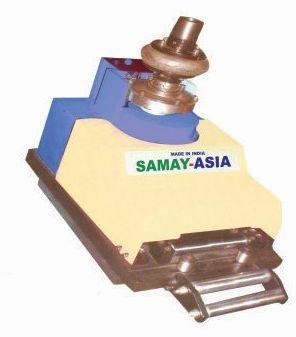

Mechanical Gripper Feeders

₹ 1.80 Lakh - ₹ 5.10 Lakh / piece

MaterialCarbide, Antifriction Bearings
PurityAccurate And Easy Pitch Adjustment,Transmission Through Bevel Gear Box,Lubrication Oiling By Grease Nipple,Accuracy Of ±20micron With Mechanical Pilot Synchronization,Long Life And Reduced Maintenance,High Speed Up To 600 Strokes Per Minute,Roller Cam Fo
Number Of FlowerFeeder For Medium/high Speed Presses
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Samay-Asia Mechanical Gripper Feeders are perfect solution for feeding strips on medium/ high speed presses. Standard Features: Accurate and easy pitch adjustment Transmission through....

Company Information

SAMAY-ASIA PRESSFEEDS & COIL AUTOMATION COMPANY

4.4/5

View Number

Member Since 12 Years
Nature of Business Manufacturer
GST No. 06AOSPJ2073G1ZU

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Samay-Asia Mechanical Gripper Feeders are perfect solution for feeding strips on medium/ high speed presses.

Standard Features:

Accurate and easy pitch adjustment
Transmission through bevel gear box and cordon shaft from the press
Lubrication oiling by grease nipple
Accuracy of ± 20micron with mechanical pilot synchronization
The Gripper are made out of carbide of give long life and reduced maintenance
All rotating parts are fitted with antifriction bearings to give long life and reduced maintenance
Easy setting of pitch length
High speed of up to 600 strokes per minute
Roller cam for pilot release setting, which gives great precision n adjustment of the fixed gripper
All adjustments are easily reached
Quick opening of the gripper for the strip insertion
Release of the fixed ripper for die piloting order to obtain & accurate positioning at high speed
Adjustment for various thickness be means knuckled knobs placed at the upper part of the feed
Mounting stand bracket
Cascade roll basket
