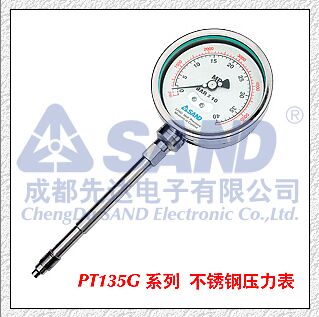

Mechanical Melt Pressure Gauge

We are offering mechanical melt pressure gauge. Pt135 series high temperature melt pressure gauge is widely used in high temperature melt pressure measurement and control of chemical fiber, oil, brewing and plastics industries under no power supply. They adopt the imported top quality chip and can built-in pressure transducertransmitter to support the uses with our ps pressure indicator to realize the distant pressure measurement and control.
model:
melt pressure gauge
mechanical pointer type pt135g
built-in pressure transducer type pt135c
built-in pressure transmitter type pt135b
pt135 features:
1. External zero adjusts for easy clearing away the temperature drift;
2. Rotary header convenient to install and read;
3. Stainless steel shell;
4. Measuring temperature and pressure in same spot(optional);
5. Multiple voltage and current output models;
6. To realize the remote transmission and pressure precision measurement.
pt135g order format:
example: pt135g-40mpa-m22-150700-e
note:
product model: pt135g
function code"g" stands for mechanical melt pressure gauge.
Coating code "null" stands for without coating.
Pressure range: 0~40mpa
process connection: m22*1.5
rigid stem length:150 mm
flexible stem length: 700mm
e: e type thermocouple
