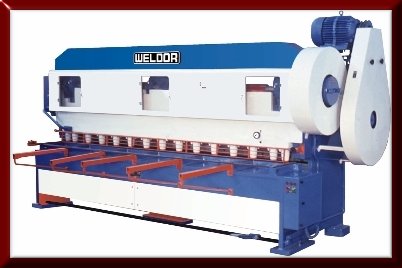

Mechanical Over Crank Shearing Machine

WELDOR Shearing Machines have been designed and developed through structural analysis technique for continuous production accuracy and repeatability.
1. Frame: Rigid steel frame of Weldor Shears are optimally designed to avoid weak sections and is of interlocked design. The ram is guided throughout its length by accurate machined guideways ensuring proper clearance and clean cut.
2. Clutch, Brake & Drive: Revolving Key Clutch lined with the Main Gear engages every time when foot paddle is pressed. Drive provided through V-Belt & all journals are fitted in Gun-Metal Bearings. Brake is adjustable and incorporated on end of Crank Shaft.
3. Hold - Down System: Hydraulic Hold down pads are actuated by cam operated pump. Hydraulic hold down pads hold the sheet securely to avoid slipping and bowing resulting in clean square cut. Hold down units are provided with oversize pads to avoid impressions on sheet metal on request.
