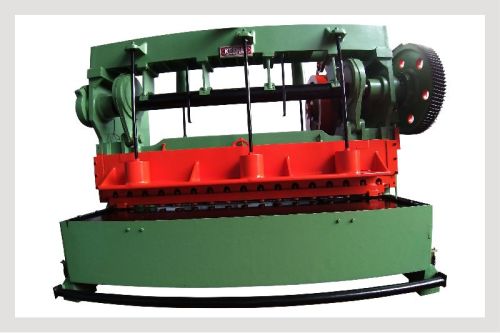

Keshav New Tech Machines (India) Pvt. Ltd in Bahadurgarh is the name to trust for accurate and high-performing mechanical over crank shearing machines. We design and supply mechanical over crank shearing machines that were manufactured using structural analysis techniques for repeated production, reliability and accuracy.
Order Mechanical Over Crank Shearing Machine Online
The machines offered by us include multiple features like auto lubrication systems, hold down systems, hydraulic manual, ball transfers, etc. You can also discuss your requirements with our team to get customized machines at a low cost.
| MODEL NO. | KNTM – 1/MOC | KNTM – 1.250/MOC | KNTM – 2/MOC | KNTM – 2.5/MOC | KNTM – 3/MOC | KNTM – 4/MOC |
|---|---|---|---|---|---|---|
| SHEARING LENGTH | 1000 MM | 1250 MM | 2000 MM | 2500 MM | 3000 MM | 4000 MM |
| SHEARING CUTTING THICKNESS AS PER MS TENSILE STRENGETH | 6 – 15 MM | 6 – 15 MM | 6 – 15 MM | 6 – 15 MM | 6 – 15 MM | 6 – 15 MM |
| DEPTH OF THROAT | 175 | 175 | 175 | 175 | 175 | 175 |
| BLADES TESTED GRADE | D2 | D2 | D2 | D2 | D2 | D2 |
| BLADES SIZE | 1050 X 100 X 25 MM | 1270 X 100 X 25 MM | 1025 X 100 X 25 MM | 1270 X 100 X 25 MM | 1550 X 100 X 25 MM | 1350 X 100 X 25 MM |
| NOS. OF BLADES FITTED | 2 | 2 | 4 | 4 | 4 | 6 |
| STROKES PER MINUTES | 45 – 48 | 40 – 45 | 38 – 40 | 35 – 40 | 32 – 38 | 25 - 30 |
| ELECTRICAL MOTOR OF ABB CO. MAKE. (HP X 1440 RPM) | 42064 | 5 – 15 | 7.5 – 20 | 10 – 20 | 10 – 25 | 15 - 30 |
| FRONT SHEET SUPPORT ARMS LENGTH | 600 | 600 | 600 | 600 | 600 | 600 |
| Standard Equipment | Optional Equipment |
|---|---|
| Fly Wheel & Gear Guard | Electric Foot Switch |
| Self-Lubrication System | Motorized Back Gauge |
| Motor Pulley& V Section Belts | Automatic Lubrication System |
| Front Gauge | Squaring Gauge System |
| Back Gauge (Manual Operated) | Stroke Counter |
| Operation & Maintenance Manual Book | Extension Squaring ARM |
