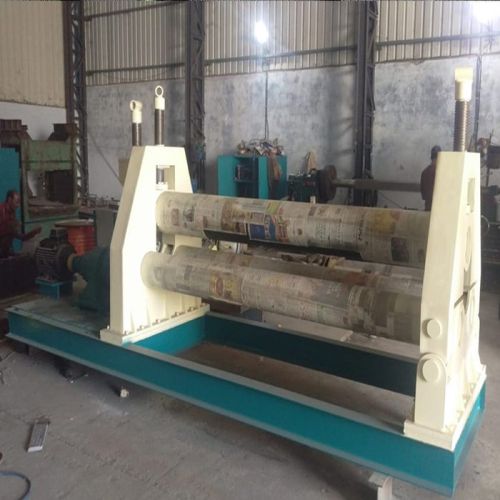

Mechanical Plate bending are designed to cater the basic requirements of bending & forming of metal plates. In this machine, the bottom rolls are driven by electric motor & gear box. The upper roll is having manual up & down adjustment to achieve desired bending radius. This is a very simple & robust design machine suitable for light to medium jobs.
| MODEL NO. | LENGTH | MAX. THICK MS | MAX. THICK SS | TOP ROLL DIAMETER | SIDE ROLLS DIAMETER | POWER HP |
|---|---|---|---|---|---|---|
| 3M - 0615 | 1550 | 6 | 4 | 120 | 100 | 5 |
| 3M - 1015 | 1550 | 10 | 6 | 160 | 130 | 5 |
| 3M - 1215 | 1550 | 12 | 8 | 180 | 150 | 7.5 |
| 3M - 1615 | 1550 | 16 | 12 | 200 | 160 | 10 |
| 3M - 2015 | 1550 | 20 | 14 | 220 | 180 | 12.5 |
| 3M - 2515 | 1550 | 25 | 18 | 240 | 200 | 15 |
| 3M - 3015 | 1550 | 30 | 24 | 260 | 225 | 15 |
| 3M - 0620 | 2100 | 6 | 4 | 140 | 115 | 5 |
| 3M - 1020 | 2100 | 10 | 6 | 180 | 150 | 7.5 |
| 3M - 1220 | 2100 | 12 | 8 | 200 | 160 | 10 |
| 3M - 1620 | 2100 | 16 | 12 | 220 | 180 | 15 |
| 3M - 2020 | 2100 | 20 | 15 | 240 | 200 | 20 |
| 3M - 2520 | 2100 | 25 | 18 | 260 | 210 | 20 |
| 3M - 3020 | 2100 | 30 | 22 | 300 | 240 | 25 |
| 3M - 4020 | 2100 | 40 | 30 | 340 | 280 | 30 |
| 3M - 5020 | 2100 | 50 | 36 | 380 | 310 | 40 |
| 3M - 0625 | 2600 | 6 | 4 | 170 | 140 | 7.5 |
| 3M - 1025 | 2600 | 10 | 6 | 200 | 160 | 10 |
| 3M - 1225 | 2600 | 12 | 8 | 220 | 180 | 10 |
| 3M - 1625 | 2600 | 16 | 12 | 240 | 200 | 15 |
| 3M - 2025 | 2600 | 20 | 15 | 280 | 230 | 20 |
| 3M - 2525 | 2600 | 25 | 18 | 300 | 240 | 25 |
| 3M - 3025 | 2600 | 30 | 22 | 320 | 260 | 30 |
| 3M - 3525 | 2600 | 35 | 26 | 340 | 270 | 30 |
| 3M - 4025 | 2600 | 40 | 30 | 380 | 310 | 30 |
| 3M - 4525 | 2600 | 45 | 35 | 400 | 330 | 40 |
| 3M - 5025 | 2600 | 50 | 38 | 420 | 350 | 40 |
| 3M - 6025 | 2600 | 60 | 45 | 450 | 380 | 50 |
| 3M - 0830 | 3100 | 8 | 5 | 200 | 160 | 10 |
| 3M - 1030 | 3100 | 10 | 6 | 220 | 180 | 10 |
| 3M - 1230 | 3100 | 12 | 8 | 240 | 200 | 15 |
| 3M - 1630 | 3100 | 16 | 12 | 260 | 210 | 15 |
| 3M - 2030 | 3100 | 20 | 15 | 300 | 240 | 20 |
| 3M - 2530 | 3100 | 25 | 18 | 320 | 260 | 25 |
| 3M - 3030 | 3100 | 30 | 22 | 350 | 280 | 30 |
| 3M - 3530 | 3100 | 35 | 26 | 380 | 310 | 40 |
| 3M - 4030 | 3100 | 40 | 30 | 400 | 320 | 40 |
| 3M - 4530 | 3100 | 45 | 35 | 420 | 340 | 40 |
| 3M - 5030 | 3100 | 50 | 38 | 450 | 380 | 50 |
| 3M - 6030 | 3100 | 60 | 45 | 480 | 400 | 50 |
