Sam Seals Mechanical Pump Seal

Supplier & Distributor of Single Coil Spring Balanced Seal. Our product range also comprises of Dry Running Agitator Seal, Multi Spring Unbalanced Seal and Spring Unbalanced Seal.

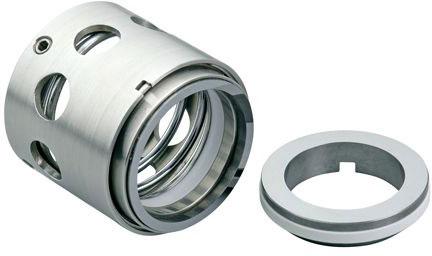

Type SSI-92: are single coil unbalanced mechanical seals, reliable & rugged enough for variety of applications. Designated as SSI-91 & SSI-92 for ‘O’ Ring & PTFE wedge type Secondary Seals respectively. The balanced & unbalanced version can just be obtained by simply changing the carbon face assembled through circlip provided. Non-clogging spring design enables these seals to be reliably used in situations involving abrasive, corrosive and viscous media. generally handled by high-pressure pumps.

Applications :

• Used in high pressure pumps, refineries, fertilizers, nuclear plants & petroleum products.

Material :

• Seal Faces : Carbon Vs Sic./TC
• Secondary Seals :Viton/PTFE/GFT
• Metal Components : SS-316

Operating Limits :

• Shaft Dia : 10 to 150mm
• Pressure : up to 30 Bars
• Temp. : -50 to 180°C
• Speed : up to 15 m/s
