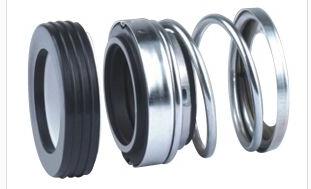

Mechanical Seal

We are offering mechanical seal.
Replacement to:
john crane 21 seal
aesseal p04p04t seal
flowserve 110 seal
roten 21aseal
sealol 43 cu short seal
sterling212aseal
us seal c seal
1. Operational conditions:
temperature: -20℃ to +120℃
pressure: ≤1.0mpa
speed: ≤15ms
2. Materials:
stationary ring: ceramic (alumina), silicon carbide reaction bonded, silicon carbide sintered pressureless, ni-binder tungsten carbide rotary ring: resin impregnated carbon graphite (furan), antimony impreg, carbon graphite, silicon carbide sintered pressureless, silicon carbide reaction bonded
secondary seal: nitrile (nbr), ethylene propylene (epdm), fluorocarbon rubber (viton)spring and metal parts: stainless steel, stainless steel
3. Seat type:
standard: tbt11
alternative: tbct20, tbt21
4. Applications: clean water, sewage water, oil and other moderately corrosive fluids
