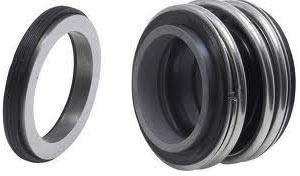

Mechanical Seal (Series SE 400)

We are a trustworthy Manufacturer & Supplier of Mechanical Seal (Series SE 400). The Mechanical Seal (Series SE 400) is a rubber bellow seal. The Mechanical Seal (Series SE 400) is an un balanced and compact seal whoch is easy to install. The Mechanical Seal (Series SE 400) has a self aligning feature which compensate abnormal shaft end play and run out and leads to improved service life. In the Mechanical Seal (Series SE 400), elastomeric bellows protect shaft and sleeve from fretting .Various seal face materials (Sic ,Carbon, Ceramic ) and elastomers (Viton,Epdm,Silicon,) can be offered for wide service application. The Mechanical Seal (Series SE 400) can also be used as a multiple seal in tandem or in a back-to-back arrangement. Installation proposals can be supplied on request. Used In

• Food processsing industry
• Dyeing industry
• Chemical industry
• Paper and pulp industry
• Water ,waste water,slurries
• Oils

• Water pumps
• Chemical pumps
• Milk pumps
• Breweries & Distilleries
• Food application
• Submersible pumps

• Shaft Diameter : 12.00MM TO 100.00MM
• Pressure p : 10 bar (max)
• Temperature t : _ 20 ... +180 C
• Velocity v : 20 m/sec

• Single spring bellow Seal
• Single acting
• Unbalanced seal
• Inside Mounted
• Independent of direction of rotation
