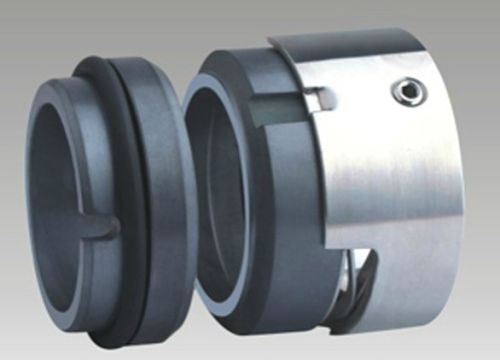

Mechanical Seal (TBHTN)

mechanical seal, for industrial pump, replace the mechanical seal of Burgmann H7N
1. Operational Conditions:
Temperature: -20centigrade to +190centigrade
Pressure: ≤ 2.5MPa
Speed: ≤ 15m/s
2. Materials:
Stationary Ring: Ceramic, Silicon Carbide, TC, Carbon
Rotary Ring: Carbon, Silicon Carbide, TC
Secondary Seal: NBR, EPDM, Viton, PTFE
Spring and Metal Parts: Steel
3. Seat Type:
Standard: TBG9
Alternative: TBG92
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids.
Designed for universal application and the interchangeable parts concept is ideal for stock rationalization. The seal face are loosely inserted and can be easily exchanged, the thrust ring is retained by the drive lugs preventing the spring falling out.
