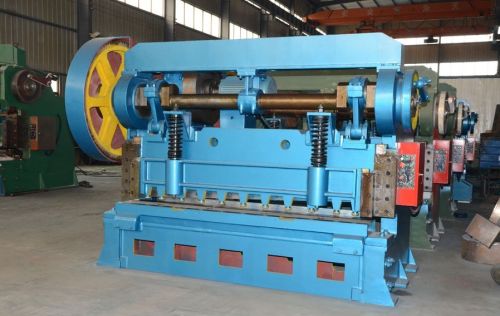

Mechanical Shearing Machine, Mechanical Cutting Machine

We offers mechanical shearing machine, mechanical cutting machine.
performance and features:
1.ce,iso,cqc sgs certification
2 .high capacity
3 ,low cost
4 .high performance
5 .high quality with good price
6. Easy to operate
7.safe and stable operation
8. Reasonable price
this series gantry structure, direct drive coupling from the motor through a gear train to two groups, one group in enclosed gear box, low a group open drive, smooth motion, easy maintenance, widely used in metal structure factory, shipyard, boiler plant, electrical plant and general mining, metallurgical and other industries
q11 series mechanical shears main parameters
product specifications dimensions (mm) shearing thickness (mm) cutting width (mm) cut the number of cutting angle table height (mm) backgauge distance (mm) motor power (kw) weight (t)
3×1300 2115×1500×1300 3 1300 58 2.25 800 350 3 1.1
3×1500 2515×1500×1300 3 1500 58 2.25 800 350 3 1.4
3×2000 3100×1500×1400 3 2000 56 1.3 800 350 4 1.75
4×2000 3200×1500×1600 4 2000 54 1.3 800 500 5.5 3
6.3×2000 3180×1765×1500 6.3 2000 40 2 800 500 7.5 4.3
8×2000 3180×1765×1550 8 2000 40 2 800 500 11 4.8
4×2500 3580×1500×1600 4 2500 54 1.3 800 500 5.5 3.5
6×2500 3675×2200×2020 6 2500 40 2 850 500 7.5 5
8×2500 3675×2250×2450 8 2500 40 2.3 850 500 11 5.5
13×2500 3680×2330×2500 13 2500 30 3 900 500 15 11.
