Media Converter, Compatible Devices : ‎Personal Computer

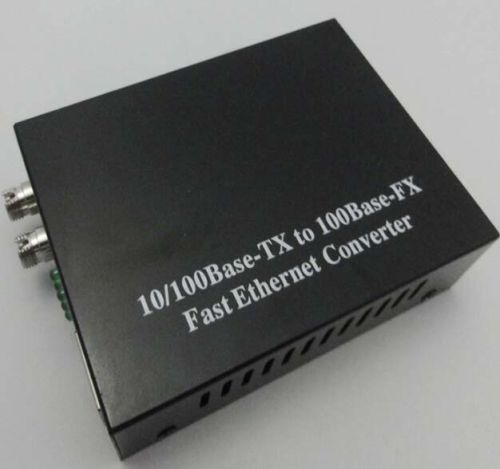

Introduction of 10 100m fiber media converter
gernal description
10100m fast ethernet fiber media converter achieves the connect transforming from 10100base-tx to 100base-fx. It changes the ethernet transmission distance from cooper’ s 100 meter to single-mode optical fiber’ s 2-100 km. What is more; the optical fiber has the advantage of anti-electromagnetic interference, so fiber optical transceivers always apply to long distance and wide bandwidth computer network.
outline
main feature:
1. Comply with ieee802.3u 10base-t and 100base-txfx
2. Support 802.3x full duplex flow control and back pressure half duplex flow control
3. Link loss alarm function
4. Supports mdimdi-x auto-sensing
5.optional internal or external power supply
6.optional sc,ct,fc, or lc (sfp module) optional fiber connector
7. Provide 1 channel optic interface and 1 channel ethernet interface
8. Small volume, low power consumption, easy to install
9.supports 2u,14-slot rack-mounted (for external power supply, desk type media converter only);supports 2u 16-slot rack-mounted (for card type, gigabit media converter only)
see the table below for the led indicator lamp
figure 1 schematic drawing of connection
explanation for led indicator lamp
led indicator lamps serve as device monitoring and trouble display. The following is the explanation for each led indicator lamp.
