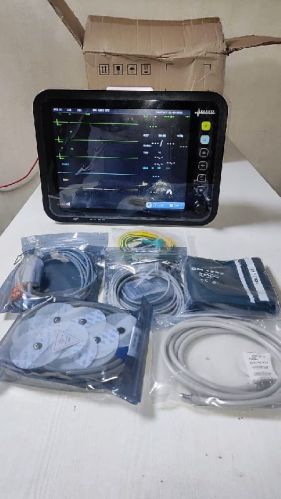

Comen Medical Equipment, Color : Black, Screen Size : 12inch

all kind medical equipment

 Physical Characteristics Size Weight Protection level Cooling system Display Display traces ECG ND10:300x210x177mm ND12:340x236x185mm ND15:394x280x189mm ND10: 3.5kg ND12: 4kg ND15: 5kg IPX1 Fanless Design Medical-grade color TFT LCD, capacitive touch screen (optional) ND10: 800x600, 10.4 inches ND12: 800x600, 12.1 inches ND15: 1024x768, 15 inches ND10:Up to13waveforms ND12:Up to13waveforms ND15:Up to13waveforms Meet standards of IEC 60601-2-27 andIEC 60601-2-25 Lead set Input signal Range Electrode offset potentialtolerance Sweep Speed Gain Waveformformat CMRR Band width Pace detection 12-lead: I; II; III; aVR; aVL; aVF;V1 V6 6-lead: I; II; III; aVR; aVL; aVF; Va; Vb 5-lead: I; II; III; aVR; aVL; aVF; V 3-lead: I; II; III Automatic 3/5/6/12-lead recognition ±10mv (p-p) ±850mV 6.25,12.5, 25, 50mm/s, error≤±10% X0.125, X0.25, X0.5, X1, X2, X4, auto Standard, Cabrera Diagnostic: >90dB Monitor, Surgical, ST mode: >106dB Monitoring Mode: 0.5-40Hz Diagnosis mode: 0.05-150Hz Surgery mode:1-20Hz ST mode:0.05-40Hz Amplitude: ± 2 mV to ±700 mV Width: 0.1 to 2 ms Defib. Protection Withstand5000VAC(360J) defibrillation Defib. recovery time ≤ 5s ESU recovery time ≤ 10 s Provide Glasgow resting 12-lead ECG algorithm Heart Rate HRrange HRaccuracy HRresolution Arrhythmia Analysis Adult: 15-300bpm Pediatric/Neonate: 15-350bpm ±1% or±1bpm(whichever is greater) 1 bpm Intended use for adult pediatric and neonate Multi-lead ECG monitoring analysis algorithm 38 classifications including: Asystole, VF/VT, high PVCs/min, R on T phenomenon, multifocal and paired VPCs, tachycardia, bradycardia, extreme tachycardia, extreme bradycardia, missed beats, polymorphic VPCs, VT, non-sustained VT, ventricular rhythm abnormalities, cardiac pauses with high frequency, irregular rhythms, ventricular bradyarrhythmia, AFib, failure of pacemaker capture or pacing, irregular rhythm cessation, AFib cessation, supraventricular contractions per minute, SVT , atrial bigeminy and trigeminy, R-on-T phenomenon for PACs, ventricular escape beats, non-sustained atrial tachycardia, atrial rhythm, multifocal premature atrial contractions, coupled PACs, and wide QRS complex tachycardia. ST SegmentAnalysis Intended use for adult pediatric and neonate ST range-2.5mV-+2.5mV (Automatic) ST accuracy ST resolution QTAnalysis ±0.02mV or ±10%, whichever is greater (- 0.8 to + 0.8 mV) 0.01 mV Intended use for adult pediatric and neonate Parameters QT, QTc, ∆QTc QTc formula QT/QTc range QTaccuracy QTresolution Bazett, Fridericia, Framingham, or Hodges 200 to800 ms ± 30 ms Rise time: 10 to 100 μs 4 ms QTcresolution 1ms QT-HRrange QT-HR:Adult15to150bpm Pediatric/Neonate:15to180bpm Respiration Lead I,II,orauto(default:leadII) Method RA-LLImpedanceMethod RRrange 0to200bpm RRaccuracy 0-120rpm:±1rpm 121-200rpm:±2rpm RRresolution 1rpm Apneatime Adult:10-60s,resolution5s Pediatric/Neonate:10-40s, resolution5s Sweepspeed 3,6.25,12.5,25,50mm/s NIBP Method Automaticoscillation Workmode Manual/Automatic/STAT,Sequence Parameters Systolic,Diastolic,Mean MeetstandardofISO80601-2-61
