Product Details
Company Details

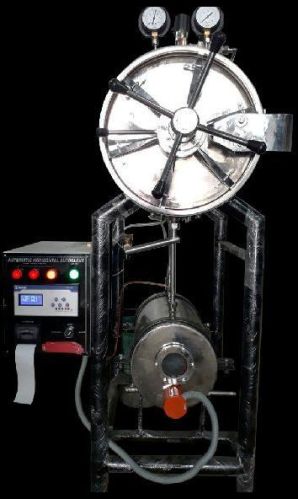

Medical Waste Sterilizer (PLT-105 B)

APPLICATIONS of Medical Waste Sterilizer

Robust and rigid construction.
Triple Walled Medical Waste Sterilizer (Rectangular) Specially designed for Sterilization of Regulated Bio-Medical Hospital Waste and related spores. It is based on the principle that microbiological action of saturated steam at elevated temperature is rapid and through.
Triple walled Medical Waste Sterilizer Rectangular is ideal tool for Hospitals & Nursing Homes.

SALIENT FEATURES & CONSTRUCTION of Medical Waste Sterilizer

These Sterilizers work on the principle of downward displacement of air which is the most economical method of obtaining sterilization.
Triple walled with inner chamber and separate boiler is made up of Heavy gauge non magnetic S.S. Sheet (304/316 grade) argon-arc welded and jacket is made out of rolled steel.
Boiler Made of thick stainless steel fitted under the sterilizer. High grade flanged type heating elements are fitted from front side for easy replacement/repair. Fitted with water gauge glass for water level, safety valve, water inlet and drain valves provided with Low Water Level cut off device.
Whole unit horizontally mounted on a sturdy, heavy M.S. duly painted or Stainless steel tubular stand.
Lid (single piece door) made out of rolled steel lined with S.S. sheet on both sides tightened by Radial Locking System which cannot be opened when under pressure. The self-locking device automatically disengages the thread mechanism when the sterilizer is under pressure to preclude any eventuality of accident.
Sealing of Lid by Neoprene Rubber Gasket.
Fitted with shelf locking safety device.
Sterilization cycle is controlled by single point multi port valve fitted at front top. Pressure gauges are fitted to read jacket & chamber pressure on the top A moisture trap is fitted in the chamber discharge line to absorb the condensate automatically to prevent moistening in the chamber.
Chamber Insulated by Mineral/Glass Wool to minimize the heat losses and is covered by polished stainless steel sheet.
Fitted with pressure gauge, safety valve and steam release valve.
Fitted with plug screen to prevent the discharge line from choking.
Drain valve is fitted at the side bottom for easy draining/cleaning.
Sterilizing Temperature up to 1340C.
Sterilizing pressure : 1.2 to 1.5 kg/cm2 (15 psi to 22psi).
Hydraulically Tested up to 40 psi.
Fitted with Digital Temperature Indicator.
Fitted with Automatic Vacuum Breaker to break the vacuum in case of formation of vacuum due to steam condensation.
Fitted with Automatic Low Water Level Cut-off Device for Prevention of Heaters.
Supplied with Heavy Duty Vacuum Pump (Optional) for vacuum steam pulsating model.
Fitted with Automatic Pressure Control Switch to economizes power consumption by reducing frequent opening of the steam release valve. It cuts off the power supply to heaters when the set pressure is achieved and re-energizes the heating elements when pressure falls below the set point.
Control panel fitted with Pressure control switch, Main switch, Pilot lamps, relays etc. and mounted on the stand of the sterilizer for easy operation.
Voltage: 440 volts, 3 phase A. C. Supply

PARAMETERS	MWS - 1	MWS - 2	MWS - 3
Inner Dimensions Dia * Depth	400 x 600 mm	400 x 1100 mm	500 x 1200 mm
Inches Conversion	16" x 24"	16" x 44"	20" x 48"
Working Load	12.0 KW	12.0 KW	15.0 KW
Working Pressure Gauge	10-22 psi
Pressure Gauge	0-30 psi
Lid Quality	Heavy mild steel sheet lined with Stainless steel
Lid Tightening	Radial locking system worked by handle
Gasket	Made of Neoprene Rubber
Sterilizing pressure	1.2 kgf / cm (15psi)at 121°c
Pressure Gauge	0-2.1 kgf / cm² (30 psi)
Operating pressure	From 15 to 22psi (Adjustable)
Inner Pressure Tank	Stainless Steel (SS-304)
Basket	Made of Stainless Steel
Water Level Indicator	Fitted on the outer chamber
Boiler - Hydraulically Tested	Upto +40 psi
Temperature Display	By Digital Temperature Indicator
Vacuum	By Heavy Duty Vacuum Pump (Optional)
Accuracy	+ 3 psi
Safety Device	Spring Loaded Type
Water Draining System	Hand Operated Valve
Heating	BY ISI Marked Immersion Heaters
Steam & Vacuum Release	By Valve
Power Supply	440 volts, 3 phase A.C. Supply

OPTIONAL FEATURES of Medical Waste Sterilizer

Temperature Recording	Thermograph with / without digital display - Circular Type
Micro Processor controller	With automatic Digital minute timer and alarm for cycle at the end.
PLC Controller	With 32 characters (2 x 16) LCD display for automatic purging of stale air sterilizing hold time for sterilizing period and cycle and with automatic exhaust pressure / recording & monitoring batch wise data.
S.S. Carriage	Available at extra cost
M.S. Trolley	Available at extra cost
Additional Tray/Shelves	Available at extra cost
