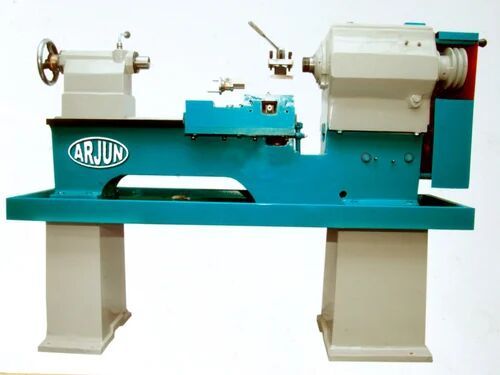

Arjun Medium Duty All Gear Lathe Machine, Weight : 590 Kg

Length Of Bed 1830(6 ") Height Of Centre 215 Swing Over Bed 425 Swing Over Cross Slide 260 Movement Of Cross Slide 225 Swing In Gap 620 Admit Between Centre 1000 Bed Bed Type 2V & 2 Flat Bed Width 279 Length Of Gap In Bed 110 Length Of Bed In Of Face Plate 125 Main Spindle Spindle Nose Thread 6 TPI75mm Taper In Spindle MT-5 Spindle Bore 52mm Tail Stock Tail Stock Ram 50.8 Taper In Tail Stock Quill MT-4 Ram Travel 150 Compound Slide Compound Travel 135 Tool Shank Size 22 x 22 Speeds No. Of Speeds 8 Range 45-1220 Thread/No. Range Diameter Of Screw 32x 4 TPI Metric 19/0.50 to 8mm Inch 23/4 to 40 TPI Electricals Main Motor 2H.P/440v Weight 590 kg Floor Space 1650 x 970 Request Callback
