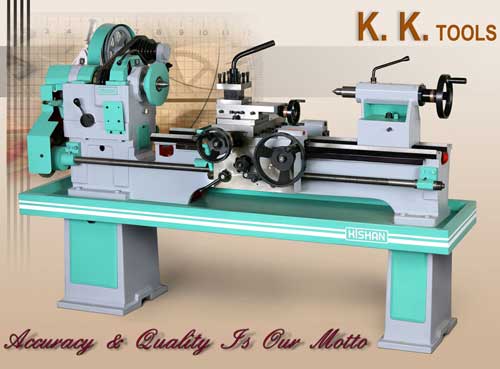

The company is primarily engaged in the manufacturing and supplying of the advanced Medium Duty Lathe Machine all across the country. Our Medium Duty Lathe Machine can also be customized as per the requirements of the clients. The Medium Duty Lathe Machine is available at affordable prices with us.
Attributes
| Model | Unit | MD-2 | MD-3 | MD - 4 |
|---|---|---|---|---|
| Bed Length | mm/feet | 1375 / 4 .5 | 1600 / 5.25 | 1825/6 |
| Admit Between centre | mm | 525 | 750 | 975 |
| Weight (Approx.) | K.g | 630 | 670 | 700 |
| Dimension (Approx.) | (L x W x H) | 1600 x 700 x1460 | 1825 x 700 x 1460 | 2050 x 700 x 1460 |
Specifications
| Bed width | mm/inch | 280 / 11 |
| Bed Type | V/ Flate | 2-Feb |
| Gap Length | mm | 120 |
| Gap length in front of face plate | mm | 150 |
| Height of centre | mm/inch | 223 / 9 |
| Swing over bed | mm | 456 |
| Swing over cross slide | mm | 250 |
| Swing over gap | mm | 670 |
| Cross Slides Travel | mm | 245 |
| Compound slide travel | mm | 140 |
| Tool Shank section max | mm | 22 |
| Spindle nose Dia | mm/ TPI | 74.3/6 |
| Spindle Sleeve nose | MT | 4 |
| Spindle Bore | mm/inch | 52/2.04 |
| Spindle Speed | No | 6 |
| Spindle Range | RPM | 35-500 |
| Spindle drive 'V' Belt | Sec.-Size | B-47 |
| Spindle motor power | HP/kw | 1/51.12 |
| Quill dia | mm | 50 . 8 |
| Quill stroke | mm | 125 |
| Taper in Quill | MT | 4 |
