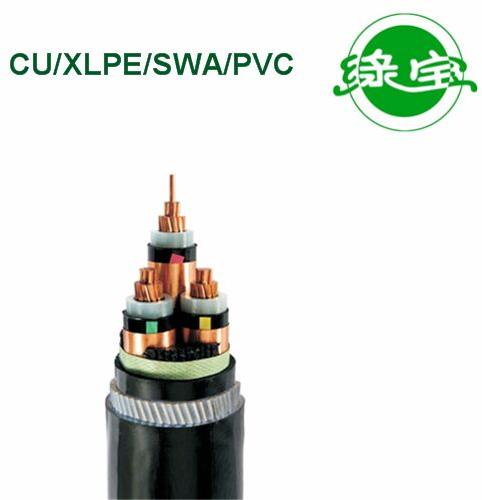

Contact SupplierWe are offering medium voltage armored xlpe power cable,
construction
conductor: compact stranded copper conductor
conductor screen: semi-conductor
insulation: xlpe(cross-linked polyethylene)rated at 90℃
â‘£insulation screen: semi-conductor
⑤screen: copper tape
â‘¥inner covering: pvc
⑦armoring: steel wire-3 cores, aluminum wire -1 core
â‘§sheath: pvc or fr-pvc type
code designation
yj: xlpe insulation v : pvc sheath
zr: flame resistant 32: steel wire armoring 72: aluminum wire armoring
applications
apply to shafts,water and soil,able to bear the larger positive pressure.
standards
international: iec 60502,iec 60228 (iec 60332-3 for zr-yjv32 only)
china: gb/t 12706 (gb/t 18380-3 for zr-yjv32 only)
other standards upon request
technical data
rated voltage: 6/10 kv
maximum conductor temperature: under normal(90℃),emergency (130℃) or short circuit no more than 5s(250℃) conditions
min. Ambient temp.: -15℃,installation temp.: 0℃
min.bending radius: 15x cable o.d for single core , 12 x cable o.d for multi core
certificates
ce,ccc,gost-r and more others at request.
