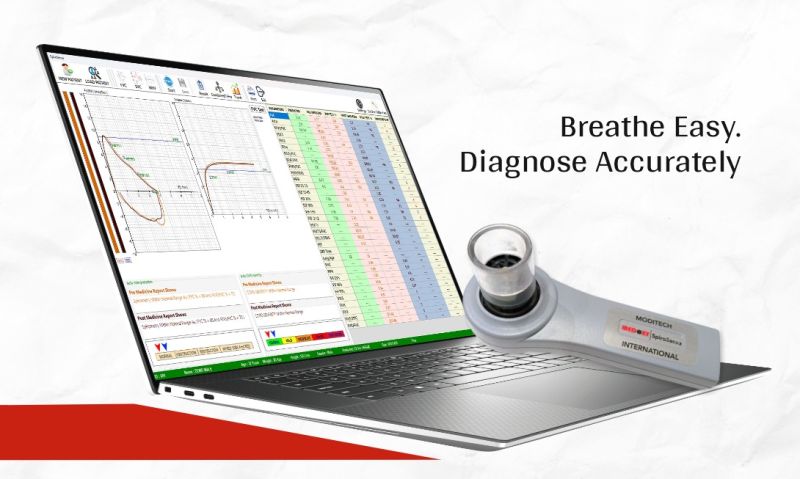

Battery Medoxy Spirosense Spirometer, Color : Grey, White

General Display

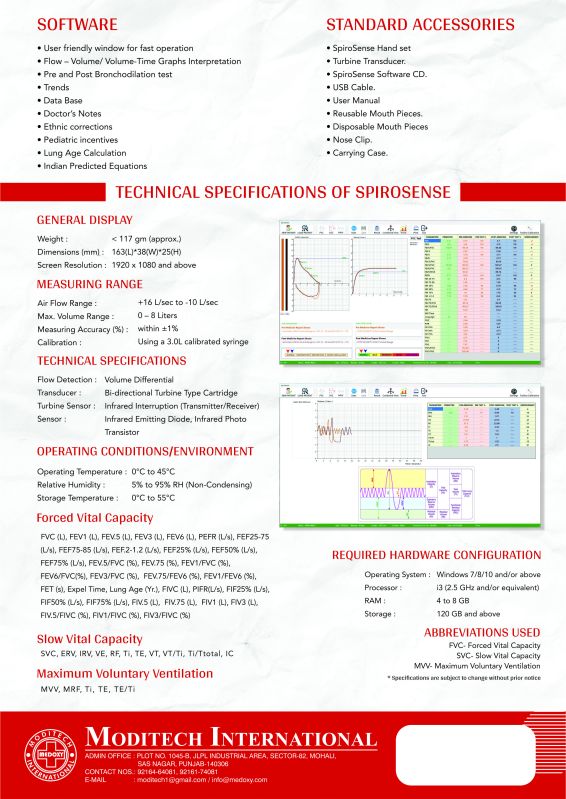

Technical Features

Weight (gm)

Dimensions (mm)

Screen Resolution

< 117 gm (approx.)

163(L)*38(W)*25(H)

1920 x 1080 and above

Tests Performed

FVC, SVC, MVV

Measuring Range

different test parameter measures

Air Flow Range

Max. Volume Range

Measuring Accuracy (%)

Calibration

+16 L/sec to -10 L/sec

0 – 8 Liters

within ±1%

Using a 3.0L calibrated syringe

FVC

FVC (L), FEV1(L), FEV.5(L), FEV.75(L), FEV3(L), FEV6(L),

PEFR(L/s), FEV.5/FVC(%),  FEV1/FVC(%), FEV3/FVC(%),  FEV6/FVC(%), FEV1/FEV6(%),  FEV.5/FVC(%),  FEV.75/FEV6(%),  FIV.5(L),  FIV1(L), FIV3(L),  FIVC(L),

PIFR(L/s), FIF25%(L/s), FIF50%(L/s), FIF75%(L/s), FEF25%(L/s), FEF50%(L/s), FEF75%(L/s), FEF25-75(L/s), FEF75-85(L/s), FEF.2-1.2(L/s), FEV.5/FVC(%), FET(s), Expel Time, Lung Age(Yr.),  FIVC(L), FIV.5/FIVC(%), FIV1/FIVC(%), FIV3/FIVC(%)

Technical Specifications

Flow Detection

Transducer

Turbine Sensor

Sensor

Volume Differential

Bi-directional Turbine Type Cartridge

Infrared Interruption (Transmitter/Receiver)

Infrared Emitting Diode,

Infrared Photo Transistor

Power Supply

Powered Via USB

SVC

SVC, ERV, IRV, VE, Rf, Ti, Te, VT, VT/Ti, Ti/T_total, IC

Operating Conditions/Environment

MVV

MVV, MRF, Ti, TE, TE/Ti.

Operating Temperature

Relative Humidity

Storage Temperature:

0°C to 45°C

5% to 95% RH (Non-Condensing)

0°C to 55°C

Required hardware Configuration

Operating System

Windows 7/8/10 and/or above

Processor

i3 (2.5 GHz and/or equivalent)

RAM

4 to 8 GB

Storage

120 GB and above
