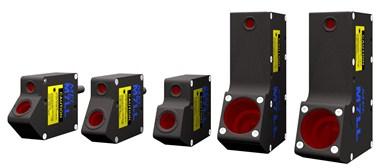

MEL LASER SENSORS

Preferred areas of application: all surfaces (matt black to high gloss finished) flatness check position control (e.g. engine valves) recognize sheet metal doubling measuring length, angle, thickness verify saw blades vibration measurement (up to 10 kHz) test of gear shifting inspection of filter elements
with the special analog module, this fast laser sensor is providing most precise measuring results on all surfaces the sampling frequency is 54 kHz the Ethernet data output allows easy cabling and access to measurement data with a resolution of 0.02 μm the sensor achieves highest precision small light spot diameter (ab 0.1 mm) allows to capture small parts. 8 models with range from 0.5 up to 200 mm are available. the separate electronic unit and a 2m connection cable are standard delivery. With the special analog module, this fast laser sensor is providing most precise measuring results on all surfaces.
