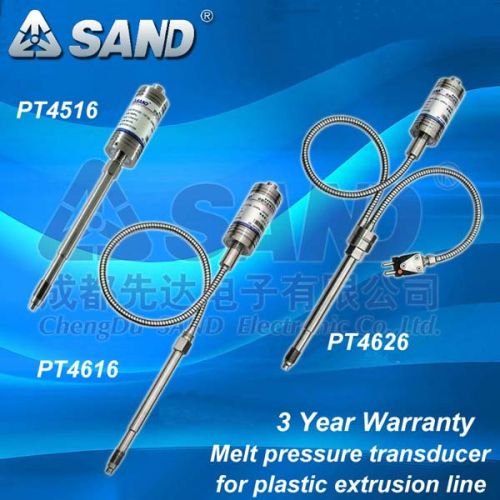

Melt Pressure Transducer

Features:
melt pressure transducer 3.33mvv output
tin,tialn coating
accuracy 0.5%fs
dynisco, gefran, gneuss replacement
3 year warranty
product introduction:
sand pt4xx6 series pressure transducers are ideal for the measurement of melt pressure in extrusion processes at temperatures up to 400 . This series are produced with special materials and alloyed elastic diaphragm together with delicate processing and debugging. The main characteristics are high accuracy and small zero and span shifts caused by changes in process temperatures.
Performance parameters:
pressure range:0 ~ 5 mpa to 150 mpa ( 0 ~ 500psi to 20000psi );
accuracy:±0.5% fs;
power supply:10vdc ( 6 ~ 12 v dc );
output signal: 3.33 mvv (default), 3.0 mvv(optional) etc;
max diaphragm temperature: 400 °c;
temperature drift:=500 mω500 vdc;
mechanical connections:12"-20 unf, m10x1.5, m12x1.5, m14x1.5, m18x1.5, m22x1.5 etc. (optional);
electrical connections: 6pin or 8pin;
thermometric config: e, j, k, pt100 (pt4626)
