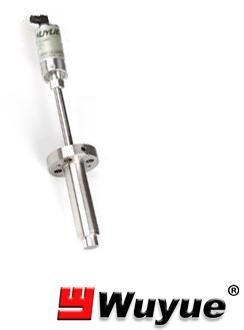

Melt Pressure Transmitter, Brand Name : wuyue

Wuyue's pt2618b series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. The performance indicators reach world class level. Ideal substitute of expensive other world class like product.
Feature: high accuracy, sealed with stainless steel, rigid rod, good stability. Calibration on both zero and span, amplified signal can be directly input in plc.high performance of anti-interference.
parameter:
pressure ranges:0-5 to 0-200mpa
accuracy:
signal output:0~5v; 0~10v; 4-20ma
working voltage:24vdc (12~36)vdc
electrical  connector: common 6pin connector
process connection: flange, other type on request
temperature resistance of diaphragm:400°c
overload pressure:1.5*fs
ce approved.
