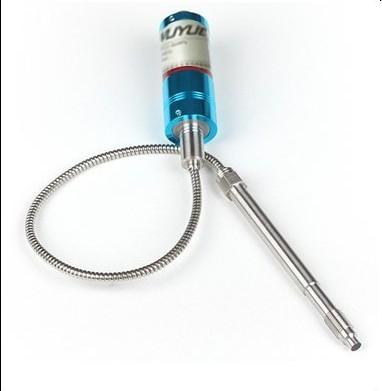

Wuyue's pt2619b series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. Products are applied to measure and control the pressure as well as temperature of those high temperature fluid medium of extruders for such as fiber, polyester, rubber, plastics.
Feature: high accuracy, sealed with stainless steel, easy installment, good stability. Calibration on both zero and span, amplified signal can be directly input in plc.high performance of anti-interference.
parameter:
pressure ranges:0-5 to 0-200mpa
accuracy:
signal output:0~5v; 0~10v; 4-20ma
working voltage:24vdc (12~36)vdc
electrical connector:6pin common connector
process connection: flange, other type on request
temperature resistance of diaphragm:300°c
overload pressure:1.5*fs
ce approved
