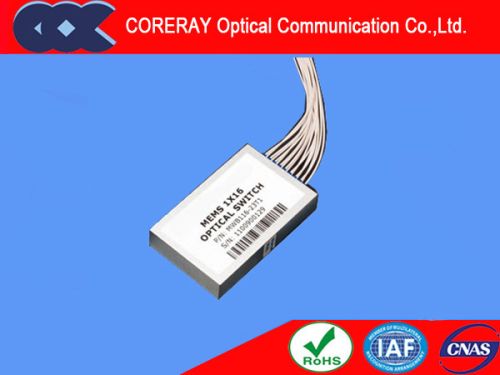

MEMS 1X16 Optical Switch

Mems 1×16 optical switch
professional supplier of fiber optical component
mems osw is based on micro-electro-mechanical system (mems) technology, which achieved low insertion loss and highly repeatability by rotating the mirror of mems chip.
Mems osw is mainly used in optical cross and connection (oxc) system, optical adddrop system, measure instrument system and optical signal monitoring system.
The products are telcordia gr-1073-core qualified, and rohs ompliant.
features
• high reliability
• intrinsic tolerance to esd
applications
• channel blocking
• configurable adddrop
• system monitoring
• instrumentation
◇ performance
parameters unit value
wavelength nm 13101550
insertion loss without connector db ≤1.0
return loss db ≥50
repeatability db ≤0.1
crosstalk db ≥50
polarization dependence loss db ≤0.15
wavelength dependence loss db ≤0.3
temperature dependence loss db ≤0.3
switch time ms ≤30
durability cycle ≥1x109
maximum optical power mw ≤500
switch mode non-latching
power voltage v 5
power consumption mw ≤500
operation temperature °c -5~70
storage temperature °c -40~85
dimension mm (l)68x (w)30x(h)13
