MEMS Accelerometer, Brand Name : MT Microsystems

₹ 25,340 / 300 300 Piece

MOQ10 Piece(s)
Brand NameMT Microsystems
Scale Factor(mV/g)1000 ~ 2
Full Scale(g)±2 ~ ±1000
Bias Repeatability(mg)≤0.25 ~ ≤60
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameMT Microsystems
Noise Level(µV/√Hz)10
Excitation(Vdc)+3~+7
Scale Factor Repeatability(ppm)(max)500 ~ 3000
Size(mm3)9.0×9.0×2.6
Bias(V)2.5±0.1
Bias temp. coefficient(mg/°C)≤0.4 ~ ≤200
Shock Resistance20000g,80µs
Scale Factor Repeatability(ppm)(typ)300 ~ 2000
Operating Temperature(°C)-55~125
Resonant Frequency(kHz)1.3~25.6
Input axis Mis-alignment(mrad)<10
Non Linearity(% of FS)(max)≤±0.1 ~ ≤±2
Storage Temperature(°C)-55~125
Frequency response(±10%)(Hz)(typ)0-250 ~ 0-5000
Resolution(mg)0.1 ~ 20
Bias Repeatability(mg)≤0.25 ~ ≤60
PackageCeramic(LCC20)
Scale Factor Stability(ppm)(max)500 ~ 3000
Bias Stability (mg)≤0.25 ~ ≤60
Full Scale(g)±2 ~ ±1000
Scale Factor Stability(ppm)(typ)300 ~ 2000
Scale Factor(mV/g)1000 ~ 2
Input axis Mis-alignment(%)<1
Scale Factor Temp. Coefficient(ppm/℃)250 ~ 500

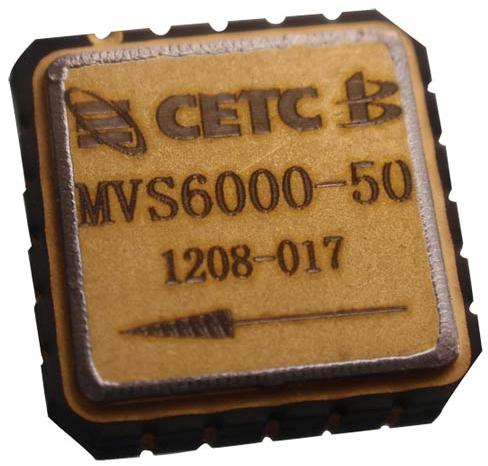

The model mvs6000 is a mems accelerometer designed for high performance applications. The accelerometer incorporates a capacitive mems sensing element providing outstanding long-term stability. The model mvs6000 based on mems process and features mechanical overload stops that provide shock protection to loads greater than 20,000g.
