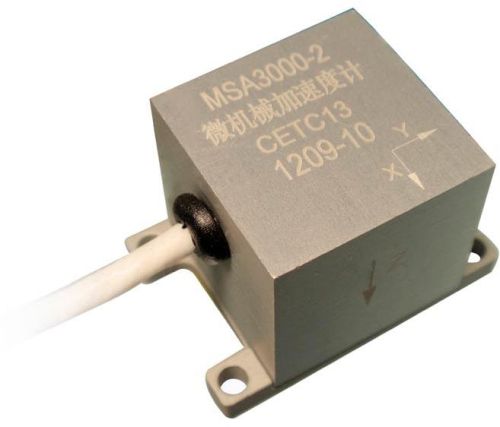

Mems Triaxial Accelerometer, Brand Name : MT Microsystems

₹ 1.08 Lakh / 1500 1500 Piece

MOQ10 Piece(s)
Case MaterialDuralumin
Brand NameMT Microsystems
Magnestability(g)<0.1
Residual Noise rms(µV)100(0.5~100Hz) 500(0.5~10KHz)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Case MaterialDuralumin
Brand NameMT Microsystems
Electrical Clipping Distortion(g)±2.5 ~ ±1250
Operating Temperature(°C)-55~125
Base Strain Sensitivity(max)(g)0.01
Shock Resistance10000g, 80µs
Recovery Time(ms)10
Storage Temperature(°C)-55~125
Magnestability(g)<0.1
Weight(gram)<20 (Cable weight,15.6gram/m)
Thermal Sensitivity Shift(-25~+75℃)(%)(max)± 4.0
Current(@5V)(mA)<18
Frequency response(-3dB)(Hz)0~200 - 0~ 5000
Zero Acceleration Output(mV)(max)2500±100
Full Scale(g)±2 ~ ±1000
Cross Axis Sensitivity(%)(max)3
Mechanical Stop(g)±4 ~ ± 1500
Damping coefficient Variation(-55℃~+121℃)(%/℃)0.08
Damping Ratio4.5 ~ 0.6
Zero Variation(%FSO)0.1(10000g Shock)
Threshold(mg)0.05 ~ 20
Thermal Transient Error(g/℃)<0.001
Non Linearity(%FS)(max)±0.5 ~ ±3
Start Time(1%Setup Accuracy)(ms)10
Sine/Random Vibration100g P.P.Value (20~2000Hz) 40g Effective value(20~2000Hz)
Residual Noise rms(µV)100(0.5~100Hz) 500(0.5~10KHz)
Sensitivity(mV/g)1000 ~ 2
Excitation(Vdc)+3~+7
Resonant(Hz)1300 ~ 10000
Thermal Zero Shift(-25~+75℃)(%FSO)(max)± 3.0 ~ ± 2.0

The model msa3000 is a mems triaxial accelerometer designed for high performance applications. The accelerometer incorporates a capacitive mems sensing element providing outstanding long-term stability. The model msa3000 provide dc ~ 5000 hz response and features mechanical overload stops that provide shock protection to loads greater than 10,000g as well as small size, light weight, etc.
