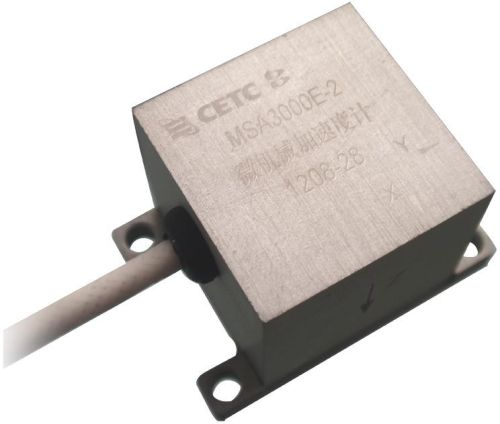

Mems Triaxial Accelerometer, Brand Name : MT Microsystems

₹ 1.25 Lakh / 1680 1680 Piece

MOQ10 Piece(s)
Brand NameMT Microsystems
Case MaterialDuralumin
Thermal Sensitivity Shift(-0~+50℃)(%)(max)± 1.0
Non Linearity(%FS)(typ)±0.2 ~ ±2
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Case MaterialDuralumin
Brand NameMT Microsystems
Base Strain Sensitivity(max)(g)0.01
Shock Resistance10000g, 80µs
Electrical Clipping Distortion(g)±2.5 ~ ±1250
Zero Acceleration Output(mV)(max)2500±100
Thermal Sensitivity Shift(-0~+50℃)(%)(max)± 1.0
Threshold(mg)0.002 ~ 20
Start Time(1%Setup Accuracy)(ms)10
Zero Variation(%FSO)0.1(10000g Shock)
Excitation(Vdc)+3~+7
Damping Ratio4.5 ~ 0.6
Storage Temperature(°C)-55~125
Residual Noise rms(µV)100(0.5~100Hz) 500(0.5~10KHz)
Non Linearity(%FS)(max)±0.5 ~ ±3
Thermal Zero Shift(0~+50℃)(%FSO)(max)± 0.5
Cross Axis Sensitivity(%)(max)3
Operating Temperature(°C)-55~125
Thermal Transient Error(g/℃)<0.001
Thermal Sensitivity Shift(-25~+75℃)(%)(max)± 2.0
Current(@5V)(mA)<18
Resonance Frequency(Hz)1300 ~ 10000
Full Scale(g)±2 ~ ±1000
Thermal Zero Shift(-25~+75℃)(%FSO)(max)± 1.0
Sensitivity(mV/g)1000 ~ 2
Frequency response(-3dB)(Hz)0~300 - 0~ 5000
Sine/Random Vibration100g P.P.Value (20~2000Hz) 40g Effective value(20~2000Hz)
Damping coefficient Variation(-55℃~+121℃)(%/℃)0.08
Non Linearity(%FS)(typ)±0.2 ~ ±2
Magnestability(g)<0.1
Recovery Time(ms)10
Weight(gram)<20 (Cable weight,15.6gram/m)

The model msa3001 is a mems triaxial accelerometer designed for high performance applications. The accelerometer incorporates a capacitive mems sensing element providing outstanding long-term stability. The model msa3001 covers ±2g ~ ±1000g full scale and features mechanical overload stops that provide shock protection to loads greater than 10,000g as well as small size, light weight, etc.
