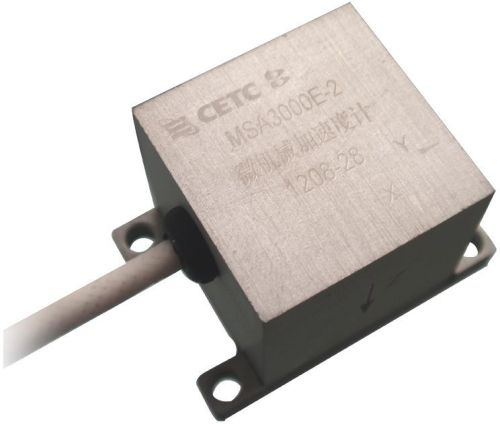

Mems Triaxial Accelerometer, Brand Name : MT Microsystems

₹ 1.26 Lakh / 1500 1500 Piece

MOQ10 Piece(s)
Case MaterialDuralumin
Brand NameMT Microsystems
Full Scale(g)±2 ~ ±1000
Threshold(mg)0.002 ~ 20
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Case MaterialDuralumin
Brand NameMT Microsystems
Electrical Clipping Distortion(g)±2.5 ~ ±1250
Current(@5V)(mA)<18
Damping Ratio4.5 ~ 0.6
Magnestability(g)<0.1
Resonant(Hz)1300 ~ 10000
Thermal Zero Shift(-0~+50℃)(%FSO)(max)± 0.5
Storage Temperature(°C)-55~125
Threshold(mg)0.002 ~ 20
Residual Noise rms(µV)100(0.5~100Hz) 500(0.5~10KHz)
Sensitivity(mV/g)1000 ~ 2
Thermal Zero Shift(-25~+75℃)(%FSO)(max)± 1.0
Full Scale(g)±2 ~ ±1000
Damping coefficient Variation(-55℃~+121℃)(%/℃)0.08
Cross Axis Sensitivity(%)(max)3
Operating Temperature(°C)-55~125
Non Linearity(%FS)(max)±0.5 ~ ±3
Start Time(1%Setup Accuracy)(ms)10
Recovery Time(ms)10
Thermal Sensitivity Shift(-25~+75℃)(%)(max)± 2.0
Thermal Transient Error(g/℃)<0.001
Zero Variation(%FSO)0.1(10000g Shock)
Thermal Sensitivity Shift(0~+50℃)(%)(max)± 1.0
Weight(gram)<20 (Cable weight,15.6gram/m)
Zero Acceleration Output(mV)(max)2500±100
Base Strain Sensitivity(max)(g)0.01
Sine/Random Vibration100g P.P.Value (20~2000Hz) 40g Effective value(20~2000Hz)
Shock Resistance10000g, 80µs
Frequency response(-3dB)(Hz)0~300 - 0~ 5000
Excitation(Vdc)+7 ~ +18

The model msa3001f is a mems triaxial accelerometer designed for high performance applications. The accelerometer incorporates a capacitive mems sensing element providing outstanding long-term stability. The model msa3001f covers ±2g ~ ±1000g full scale and features mechanical overload stops that provide shock protection to loads greater than 10,000g as well as small size, light weight, etc.
