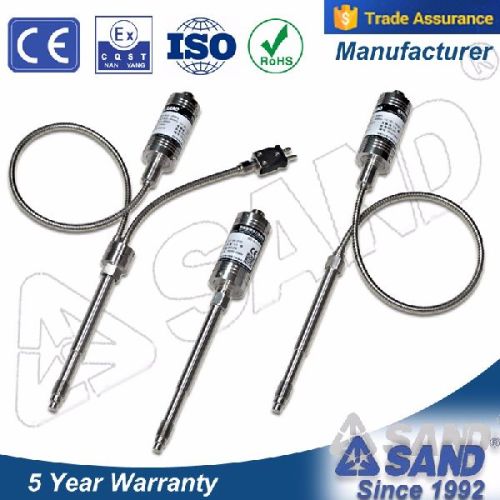

Mercury-Free RoHS Melt Pressure Transducer

We are offering mercury-free rohs melt pressure transducer.
Pt3xx6 series environmental friendly melt pressure transducers. This series of products adopting safe structure & non-toxic, pollution-free transmission medium are used for food, beverage, medicine machines. All of the constituent componets are safe and can directly contact with food since they do not produce any harmful toxic substances.
specification:
pressure transducer pressure transmitter
rigid stem type pt3516 pt3516b
flexible stem type pt3616 pt3616b
pressure & temperature dual type pt3626 pt3626b
performance parameters:
pressure range 0 ~ 5 mpa ~ 150 mpa ( 0 ~ 750psi ~ 20000psi )
accuracy ±1.0% fs
power 24vdc ( 9 ~ 36 v dc )
output signal 3.33mvv, 3.0mvv
probe heat resistance 400 °c
temperature drift =500mω500vdc
mechanical connections 12"-20unf, m10x1.5, m12x1.5, m14x1.5, m18x1.5, m22x1.5 etc. (optional)
electrical connections 6pin (sd02106psd02106s)
thermometric config thermocouple: e, j, k, s type etc.; (pt3626 series optional)
thermal resistance: pt100 etc. (pt3626 series optional)
order format:
example:
pt3616-50mpa-12"-20-150470-3.33
note:
product design model "pt3616".
Function code "b" stands for melt pressure transmitter.
Coating code "null" stands for without coating .
Pressure range: 0 ~ 50mpa.
Thread size : 12"-20unf .
Rigid flexible length:150mm470mm .
Pressure output signal: 3.33mvv.
