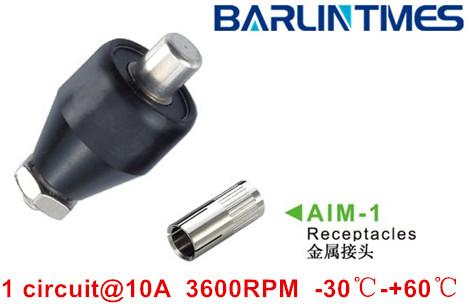

Mercury Slip Ring, Brand Name : Barlin Times, Certificate : 13094761

We are offering no doubt, mercury slip ring just take advantage of mercury as a conductive media, which only could transfer current and signal via liquid metal under normal temperature status. This kind of slip ring has the main feature of strong stability, high precious signal and no noise. Meanwhile, compared with the traditional mechanical sliprings, this rotary connector is smaller size, earlier installation and free maintenance, etc. Mercury slip ring provides the most scientific, economical and profitable rotary solution for various application industries.
features:
1.high work speed & big current
2.compact structure, easy installation and smooth operation
3.free maintenance and more durable than traditional slip ring
4.apply to any rotating device to transmit various signal and power
5.non-mercury slip ring is optional ( conform to ce, rohs certification )
6.stainless steel and aluminum alloy housing is optional
8.contact pin and lead wire installation is optional
application:
1.rotating table, rotating camera and ratary lamp box
2.cable wheel, winding machine
3.resistors cutting machine
4.robot arm
5.wind turbine generator
6.medical equipment, spinning led sign board
7.manufacturing and handling control machine
a1m
specification
product model a1m
circuitscurrent 1circuit @ 10a
max frequency 200mhz
max work speed 3600rpm
torque 35gm
remarks: transferring micro voltage, current, emf, thermocouple, strain gauge, audio, video, high frequency signal, etc.
