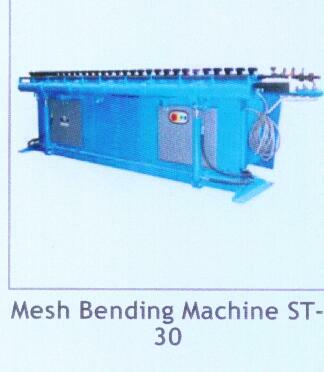

Mesh Bending Machine - Model No. St-30

MESH BENDING MACHINE - MODEL No. ST-30
The mesh bending machine is a machine witch has the capability to form reinforcing steel mesh links. It is manufactured in different sizes. Moreover it has bending abilities depending on the purpose for which it is intended, while each type of this mesh bending machine has the capability to cover a wide range of bending. The machine has been designed and manufactured according to the latest specifications. The bending bar of the mesh, which is a basic element of the machine, has the ability to increase and or decrease the distance from the stable bending point. As a result the right choice of bending is made according to the diameter of the iron from which the mesh is made. From the bending angle the machine has a choice of degrees. Depending on the type of the mesh bending machine, this choice can be made by an electronic or electric system (a combination of terminal switches). The motion of the bar is achieved with a hydraulic unit, which is installed within the machine. All the types of the mesh bending machine have simple control and (depending on the type) cover all the specifications and requirements for the bending of the mesh.
• Formation capacity: 30 Ø 8 – 24 Ø10 – 20Ø12 (mesh type: S.500s)
• Feed: 380 V – 3 / 50 Hz
• Horse-power: 4,1 Hp
• Electrical voltage of operation buttons: 24 V
• Speed: 1
• Pistons: 2
Dimensions
• Height: 95 cm
• Length: 340 cm
• Width: 85 cm
• Weight: 800 kg
Proper weather conditions
• Temperature: from -10 oC up to 45 oC.
• Humidity: up to 90
