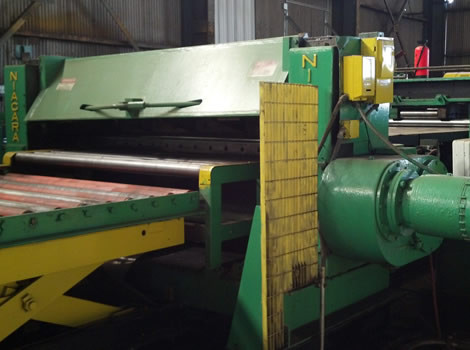

MESTA CUT TO LENGTH LINE

rjm-mesta-cut-to-length-3rjm-mesta-cut-to-length-4rjm-mesta-cut-to-length-1rjm-mesta-cut-to-length-2
rjm-mesta-cut-to-length-3rjm-mesta-cut-to-length-4rjm-mesta-cut-to-length-1rjm-mesta-cut-to-length-2
MESTA CUT-TO-LENGTH LINE
(72” x 40,000 lbs. x 0.187”)
Specifications
UN-COILER McKay Un-coiler (No Serial Number) with 20 ton hydraulic coil cart Un-coiler is Cone Shaped to handle various ID coils Un-coiler (as installed) has a 68” max OD coil capacity Un-coiler 72 inch max width coil capacity Un-coiler has 40,000# max coil weight PEELER TABLE Peeler Table wcoil guide 72” x 118” FLATNER MESTA Flatner – (No Serial Number) 96” wide rollers Flatner – 8 rollers on top – 9 on the bottom – Plus Feeder Rolls SHEER NIAGRA 8 Foot Hydraulic Shear – 316 capacity (No Serial Number) 12 foot adjustable height hydraulic roller conveyor SLITTER BRADBURY – 8 inch arbor – 72 inch wide slitter – (.025 thru .125) PLATFORM OPERATORS Steel Platform – 6 feet x 30 feet AIR COMPRESSOR – AIR DRYER AIR COMPRESSOR – 5 H.P. Speedaire AIR DRYER – Wilkerson ELECTRICAL Quantum III Digital DC Drive
