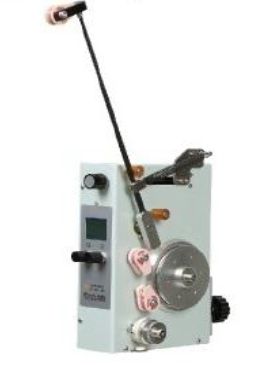

Contact SupplierThe MET-B/MET-F series multply tension series allows for different tension settings in different stages of a winding program.The tension is generated using hysteresis brakes and a built-in control circuit. The controllable voltage input setting helps achieve smooth, stable and consistent tension output.The Series Operates with DC24V and switching between the pre-set tension values is sample, it comes with wire breakage detection.
Details :
Advantages :
Model |
Tension Range (grams) | Applicable wire size (mm) | Dimensions(mm) | Weight (Kg) |
MET - B500 | 50g-500g | 0.07-0.30 | 250*200*92 | 2.6 |
MET- B1000 | 100g-1000g | 0.10-0.45 | 250*200*95 | 2.6 |
MET - B2000 | 200g-2000g | 0.15-0.65 | 250*200*92 | 3.0 |
MET - B3000 | 300g-3000g | 0.20-0.80 | 260*220*95 | 4.5 |
Model |
Tension Range (grams) | Applicable wire size (mm) | Dimensions(mm) | Weight (Kg) |
MET - F500 | 50g-500g | 0.07-0.30 | 250*200*92 | 2.7 |
MET - F1000 | 100g-1000g | 0.10-0.45 | 250*200*92 | 2.7 |
MET - F2000 | 200g-2000g | 0.15-0.65 | 250*200*92 | 3.0 |
MET - F3000 | 300g-3000g | 0.20-0.80 | 260*220*95 | 4.5 |
