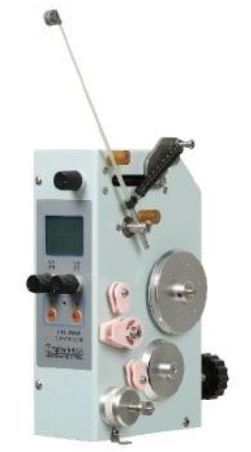

Contact SupplierThe MET-D Multiple tension series allow four tensions‘ settings in diflerent stages of a winding program, The tension is generated using hysteresis brakes and a built-in control circuit. The controllable voitage input setting helps achieve smooth, Stable and consistent tension output. The MET -D serise operates with DC24V and switching between the Pro-set tension is simple. It comes with wire breakage detection.
Advantage
Model |
Tension Range (grams) | Applicable wire size (mm) | Dimensions(mm) | Weight (Kg) |
MET - D600 | 15g-600g | 0.05-0.35 | 220*180*97 | 2.3 |
MET - D1000 | 15g-1000g | 0.05-0.45 | 220*180*97 | 2.2 |
