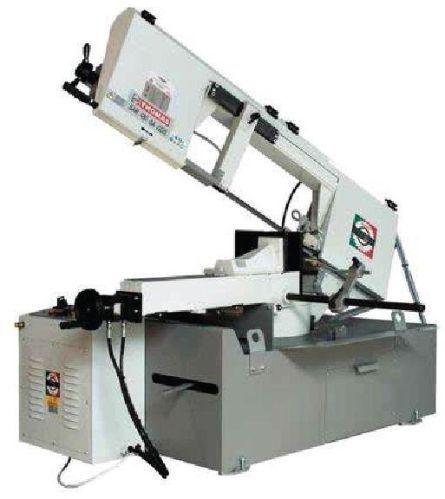

SAR 480 SA GDS - Semi-Automatic Horizontal Band Saw Machine

This semi-automatic machine SAR 480 SA GDS can perform mitre cutting of structural profiles, outstanding for everyday jobs. This is a powerful band saw machine, ideal for regular intensive use on harder metals, like iron and steel.

Two ways miter cutting (from 0° to 45° left or 45° and 60° right).
Replaceable working table.
Cast-iron sawframe on twin tapered bearings and ring nut to provide greater stability.
Precision blade-guide with hard metal pads, bearings and anti-corrosion treatment.
Vice with quick lock lever.
Cutting cycle: vice locking of material to cut - sawband starts running - sawframe gravity downfeed - sawband stops at the end of the cut - sawframe lift.

TECHNICAL FEATURES AND CUTTING CAPACITY
Machine bed in thick metal works exclusively made by domestic workshops. High level machining and finishing of the parts.Vice and sawframe in cast-iron providing high stability and vibration free cutting. Side-to-side mobile vice with quick pawl and rack approach system. Mechanical blade tension with handwheel. Precision blade-guide with hard metal pads and roller bearings. Anti-corrosion treatment with electrolytic nickel-plating and galvanization zinc plating ensure long lasting cutting precision.Electric motor and reduction unit from domestic ISO certificated manufacturers.Electric installation according CEE regulations. Set of fuses against current overload. Motor protected thermal feeler.Safety microswitch on the blade protection.Coolant liquid with electropump and crucible.Severe tests on mechanical tolerances, electric installation and final performance test.

STANDARD EQUIPMENT
Certificate of conformity and instruction manual according to Machine Directive 2006/42/CE .
Set of service spanners.
Bar stop.
Bi-metal sawband 3810x27x0.9.

OPTIONAL EQUIPMENT
Electronic sawband speed variator ( Inverter ) from 20 to 100 mt/min.
HYDRAULIC VICE: automatic locking and opening of the vice.
Rollerway 2 meters long on loading side (capacity 1000 kg).
Rollerway 2 meters long on unloading side (capacity 1000 kg) with bar stop.
*available versions: manual vice two speeds or inverter and hydraulic vice.

TECHNICAL SUPPORT
Technical support from the local service centre.
Spare parts delivery is guaranteed for 10 year from the construction date.
