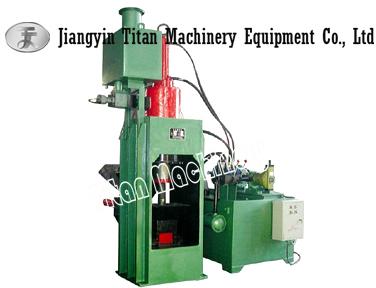

Metal Briquetting Press, Brand Name : Titan

We are offering metal briquetting press.
1.application
y83 series briquetting press can cold press the scrap iron, steel, aluminum and other metals into cylindrical briquettes with the density of about 5-6 ton per square meter and the briquettes are able to be directly melted for reproduction. The machine can help you to reduce the loss when reproduce the burning loss in smelting so to make recycling and smelting easier and convenient, and the briquette can substitute the pig iron as raw material directly. We offer you totally 9 different types with different working force from 200 tons to 630 tons.
2, features:
a, fluid drive endows y83 series with small size, light weight, low noise, high efficiency and many other advantages comparing to traditional mechanical drive.
b, y83 provides option of auto and manual operation system. The tandem hydraulic cylinders increases the work speed and improves the production output.
c, y83 series is designed and produced of a monothlic casting steel and this improves the stablability and lengthen the machine life.
D, the electrical part adopts imported plc automatic control system which can reduce the malfunction ratio.
E, y83 is widely used in different fields including scrap metal recycling industry and steel factory offering you qualified products.
3, technical parameters:
nominal force : 2000 kn
machine size main machine：2100*650*2100oil box：1100*1100*700
briquette size: φ 70~90 mm
briquette density: ≥ 5 tonm3
briquette frequency: 5 pcsmin
briquette weight : 1.5~2.7 kgpc
power: 18.5 kw
work pressure: 20 mpa
operation: manualautomatic
output per shift (8 hours standard): 3.5~6.5 tshift (8 hours)
