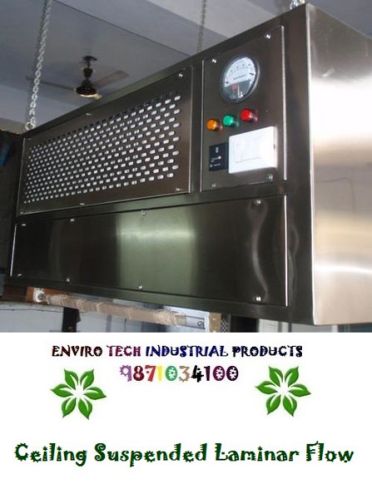

Ceiling Suspended Laminar Flow Cabinet, For Industrial

Ceiling suspended laminar flow
ceiling laminar air flow (claf) are used for ot applications, pharma filling & packing line etc. Ceiling laminar air flow provides ultra clean sterile hepa filtered class 100 air in a isolated area where the highly sensitive process activities are carried-out. Ceiling laminar air flow available in complete stainless steel construction or gi construction with pu coated finish. Equipped with minipleat hepa with dynamically balanced ultra-low noise blowers for optimum airflow.
technical specifications of our ceiling suspended laminar flow are:
model
etip-36-24
etip-72-36
work area dimension (l x w x h)
1035x760x665 mm
1950x1065x665 mm
hepa filter area (l x w)
915 x 610 mm
1830 x 915 mm
air velocities
0.45 ± 0.05 mps
air flow
vertical
noise level
less than 67 db
vibration level
minimum
light intensity
> 300 lux
power supply
230v ac 1-ø 50hz
two stage filtration
• eu6 – prefilter (95% down to 5 micron)
• eu14 - hepa filter (99.999% down to 0.3 micron) at supply position
motor-blower
statically & dynamically balanced motor-blower with suspension arrangement to reduce noise level
work table
ss work table with due reinforcement
side panels
glass side panels
lights
fluorescent lights with milky white diffuser
pressure gauge
differential pressure gauge
timer
clean down timer with operation hold indicator
dop test port
515 amp switch socket for external equipment.
