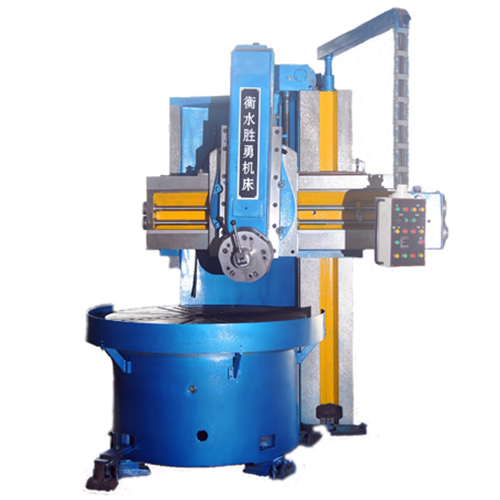

Metal CK5126 CNC Vertical Turret Lathe Machine

Product name :CNC Vertical turret lathe machine for metal CK5126
Application fields of CNC Vertical turret lathe machine for metal CK5126
CNC Vertical turret lathe machine is suitable for various rough and finish turnings including internal and external cylindrical surface, conical surface, end face , grooving, drilling,tapping and reaming etc process machining.
CNC Vertical turret lathe machines VTL machine model:
CK5112CK5116CK5118CK5120CK5123CK5125CK5126
CK5225CK5232CK5240CK5250CK5263 CK5235
Technical specification of CNC Vertical turret lathe machine for metal CK5126
1 Table diameter 2300mm
2 Maximum turning diameter 2600mm
3 Maximum Height of workpiece 1300mm
4 Maximum Weight of workpiece 10 t
5 Speed range of table 2.5-80 rmin
6 rotation speed of work table 16
7 Range of feed rates 0-1000 mmmin
8 Step stepless
9 horizontal travel of vertical slide 1600 mm
Vertical travel of vertical slide 915 mm
10 Horizontal travel of side tool post 750 mm
Vertical travel of side tool post 900 mm
11 Crossrail travel 850 mm
12 Maximum size of tool bar section 35×45 mm
13 Power of main motor 37 kw
Rotating Speed 1470rmin
14 Power of feed motor 1.31.7 kw
Rotating Speed 9401440 rmin
15 Rapid travelling speed of tool post 2000 mmmin
16 Machine weight(Approx) 19.5 t
17 Overall dimensions(L ×W×H) 3450x3430x4100mm
