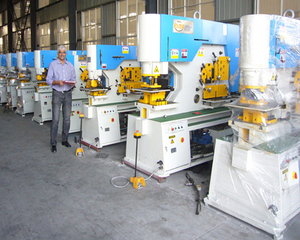

Metal Combined Punching Machine, Metal Combined Shearing Machine

We are offering hot sell metal combined punching and shearing machine,hydraulic ironworker.
Product description
q35y series hydraulic iron worker:
this type machine is combined punch and shear with multi-functions, easily operate with two hydraulic food pedals.
functions: shearing, sectional cutting(squar, round, channel, joints, equal angle). Notching, punching.
tools, beside standard set of tools, it has different sizes option for overall, joints. Round, louver, muti-v bending shape according to custome'r demand
china pump, simens electrical, imported searling rings with ce qualified.
hydrauilc iron worker with specifications each model
description unit q35y-16 q35y-20 q35y-25 q35y-30 q35y-40 q35y-50
shearing flat bar thic x wide mm 16x250 20x330 25x330 30x355 35x450 40x450
max capacity mm 8x400 10x480 16x600 20x600 25x700 30x750
section cutting square bar mm 40 50 50 55 60 65
round bar (dia) mm 45 50 60 65 70 80
channel (type) mm 120 160 200 280 320 360
joists (type) mm 120 160 200 280 320 360
equal at 90 mm 125x12 140x12 160x14 180x16 200x16 125x12
notching thickness mm 8 10 10 12 20 20
width mm 80 80 80 80 80 80
depth mm 100 100 100 100 100 100
punching thickness mm 16 20 25 26 35 40
max diameter mm 25 30 35 38 40 45
throat depth mm 300 355 406 600 700 800
max stroke mm 80 80 80 80 80 80
number of stroke 25mm 8-22 8-22 8-22 8-22 8-22 8-22
tensile strength (timesmin) 450 450 450 450 450 450
oil volumn, 46# l 60 80 120 210 250 280
motorpower kw 4 5.5 7.5 11 15 18.5
overall size, lx w x h mm 1640x730x1770 1860x900x1900 2355x960x2090 2680x1040x2300 1950x830x2300 2250x930x2100
machine weight kg 1700 2300 4300 6800 9500 12500
