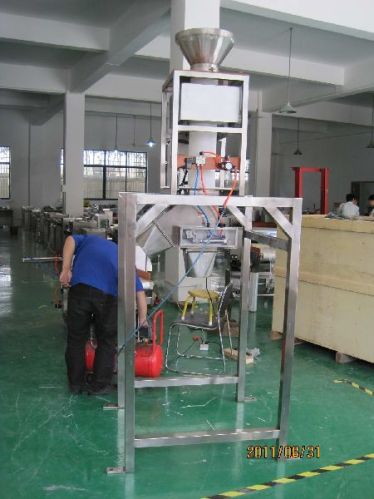

Metal Detecting Machine

Appliacation:
Metal impurities detecting in food, pharaceutical, food ingredients, condiment, health care things, particle plastic and farinose particle etc.
Features:
1. Whole stainless steel structure with detecting head
2. Adopting advanced electric and mechanical designing technique.
3. Two channel DSP technology advance the high anti-interference ability. And suppress the effect of the products effectively, up to the best detecting condition
4. The signal is finished by digital circuit, it is simple to change, and reliable to use.
5. It able to detect all kinds of metal chips, such as the iron, stainless steel, copper, aluminium and lead, etc.
6. Interactive interface, the liquid crystal of LCD display, Chinese and English menu, as well as convenient operation.
7. Easy to clear, take off and assembel
Specification
Model: JL-IP
Spec: P70 P100 P150
Pipe diameter: 70mm 100mm 150mm
Sensitivity: ≥ Feφ 0.6mm ≥ φ 0.8mm ≥ φ 1.0mm
≥ SUSφ 1.2mm ≥ φ 1.5mm ≥ φ 2.0mm
Install high: 800mm 900mm 1000mm
Speed: 1th 2th 4th
Alarm method: LED with buzzer
Reject Method: Auto rejectdevice
Pressure requirement: ≥ 0.5Mpa
Applied Environment: 10_40 Indoor, Humidty less 85%
Power: 220V
Weight: 80KGS.
