Metal Dry Running Agitator Seal

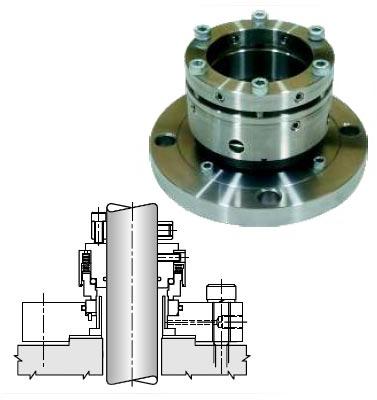

Dry Running Agitator Seal (Type FSI 101)
We offer Dry Running Agitator Seal (Type FSI 101) which is an outside mounted balanced seal. It requires no shaft or sleeve step for balancing. The Dry Running Agitator Seal is known for good performance in high vacuum conditions. The seal is economical as no auxiliary equipment is needed for installation. Our Dry Running Agitator Seal can be easily installed and repaired on the field thus it also minimizes replacements costs & downtime.
Main features of the Type FSI 101 dry running seals are :

• Simple, rugged drive design that withstands shaft movement vibration & deflection.
• eal design eliminates the need of auxiliaryequipmentsforcooling & lubricants for mixer application.
• It eliminates the possibility of product contamination, since there is no use of barrier fluid
• Can be used in high vaccum applications
• These seals are very cost effective
• Seals with bearing can be provided for vessels having greater misalignments with special arrangement

Applications : Used in top entry mixer vessels in pharmaceuticals & chemical industries.
Materials

• Seal Faces : Carbon/Sic/TC
• Secondary Seals : Viton/EPR/pTFE/GFT/AFLAS/FFKM
• Metal Components : SS-316/304

Operating Limits

• Shaft Dia. : 15 to 100mm
• Pressure : up to 1.40 Bars
• Temp. : -20 to 120^oC
• Speed : up to 1 m/s
