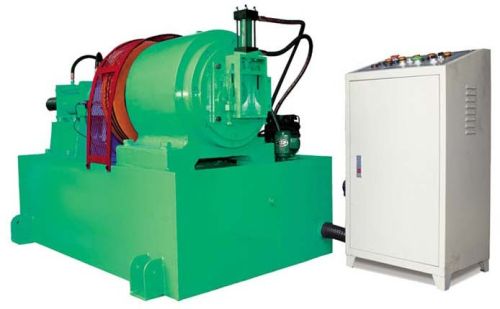

Metal Embossing Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are enlisted among the prominent Manufacturers, Suppliers and Exporters of Metal Embossing Machines from China. The Machines we make available are used for embossing stainless steel pipe, iron pipe and aluminum pipe. Our Metal Embossing Machines can process a variety of flower shapes, such as flat flower, round flower, craft flower, bulk flower, egg flower, etc. The workable diameter of pipe ranges from 6-114mm, pipe thickness from

View More Details

Send Enquiry

Specifications

Model	25 Model (BG-07)	50 Model (BG-08)	76 Model (BG-09)	114 Model ( BG-10)
Mold size (W x L x H)	35 × 300 × 55	50 × 300 × 75	70 × 400 × 60	90 × 650 × 70
Pipe range (mm)	® 6 - ® 32	® 25 - ® 51	® 51 - ® 76	® 38 - ® 114
Wall thickness (mm)	0.2-1.5	0.2-2.0	0.4-2.5	0.7-3.0
Forming length (mm)	290	290	360	600
Forming times(S / times)	3-12	3-20	8-30	10-40
Reduce the wedge program (Ma)	180	200	250	450
Mold opening and closing volume (Max)(mm)	28	30	40	50
Main motor (KW)	3	4	7.5	11
Spindle speed (rev / min)	300	200	200	200
Spindle height(mm)	800	800	800	900
Total weight (kg)	≈ 1500	≈ 2000	≈ 3000	≈ 5000
