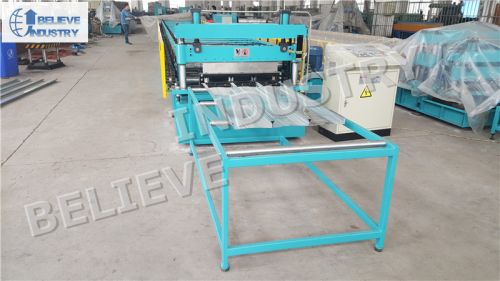

Metal Floor Deck Roll Forming Machine For Closed Type

We are offering metal floor deck roll forming machine.
Description:
this roll forming machine for closed type metal floor deck are used to producing floor decking plates. We manufacture machines according to the specific requirements by our customers. Also we design new profile drawings according to specific products. This machine consists of decoiler, feeding and guilding device, roll forming parts, cutting device, hydraulic station, electric control system and collecting table, etc. Controlled by plc, it is easy to be operated and maintained by workers. And all famous brand electric control parts ensures the perfect and stable performance of the machine.
Main specifications:
â�¦â coil material information
â  â  1. Thickness: 0.8-1.2mmmm
â  â  2. Feeding width: custom-made
â  â  3. Yield strength: g550mpa
â  â  4. Applicable material: galvanized steel, color steel, stainless steel
� 5t hydraulic uncoiler
â  â  1. Maximum capacity: 5t
â  â  2. Coil width: maximum 1500mm
â  â  3. Uncoiler i.d.: 580mm
â  â  4. Uncoiler o.d.: 1350mm
� roll forming machine:
â  â  1. Forming station: 24-32 stations
â  â  2. Roller material: gcr15 steel, hrc 58-62
â  â  3. Diameter of shaft: 120mm
â  â  4. Shaft material:â high grade 45# steel
â  â  5. Drive type: chain wheel drive
â  â  6. Main power: 11kw*2
â  â  7. Forming speed: 12-18mmin
� cutting device:
â  â  1. Cutting type: hydraulic cuttingâ
â  â  2. Material of cutting blade: cr12mov
â  â  3. Cutting tolerance: 10m+-0.5mm
� electrical control system:
â  â  1. Plc: panasonic brand
â  â  2. Encoder: ormon brand
â  â  3. Frequency converter: yaskawa brand
â  â  4. Touch screen: mcgs
â  â  5. Operation type: touch screen and button
� product collecting table:
â  â  1. Type: simple non-powered
â  â  2. Function: to support finished products
