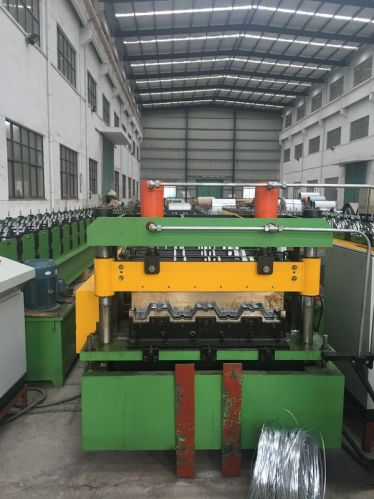

Metal Floor Deck Roll Forming Machine YX51-260-780

We are offering roll forming machine.
Description:
this metal floor decking roll forming machine is used to produce metal floor decks which are widely used in steel buildings. Main components of this machine are decoiler, guiding and leveling device, roll former, hydraulic cutting device, collecting table, hydraulic station, etc. fully automatically controlled by plc and operated by touch screen, the machine enjoys high forming speed and makes little noise.
technical parameters - yx51-260-780
raw material carbon steel, galvanized steel, q235
material thickness 0.8-1.5mm
material width depend on specific profile
diameter of shaft 120mm
material of shaft 45# steel
material of rolls
gcr15 over quenching hrc 58-62°
main power 11kw*2
forming speed 15-20mmin
forming station 24-32 stations
cutting type hydraulic cutting
cutting blade
cr12 mov
