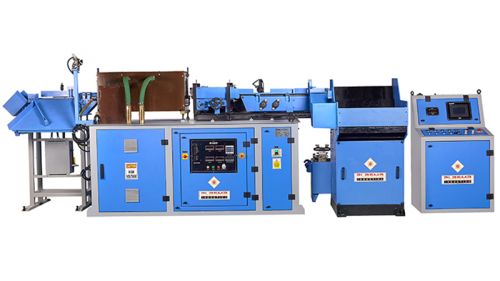

100% 6th Generation IGBT based series resonant power topology-based induction heater. Accessories of Automatic billet feeding system, Automatic heavy-duty elevator, Infrared non-contact pyrometer, 2 way /3 way accept reject system. Safety interlock with feature of exceptionally superior performance,loss motion detection,standby & rapid start/stop,energy monitoring system,epoxy insulated coil winding.
Product Specification
Power Rating: 125 KW TO 300KW
Frequency: 3 KHZ to 20 KHZ
Size: 1 Mtr X 2 Mtr X 1.2 Mtr
Automation: Optional with touch screen.
Loading System: Pneumatic / Hydraulic Pusher / Infeed drive.
Water System: separate with Alfa Laval Heat Exchanger.
Application
Forging Industries
Auto Component manufacturing
Engineering Parts manufacturing
Agriculture parts manufacturing
Accessories
Safety Interlock with Feature
| RATTING (KW) | DIA (MM) | FREQUENCY (KHz) | PRODUCTION (Kg/Hr) |
|---|---|---|---|
| 125 | 32/60 | 6 | 290-320 |
| 150 | 36/65 | 6 | 360-390 |
| 175 | 40/65 | 3 | 435-460 |
| 200 | 40/75 | 3 | 500-525 |
| 250 | 45/75 | 3 | 625-660 |
