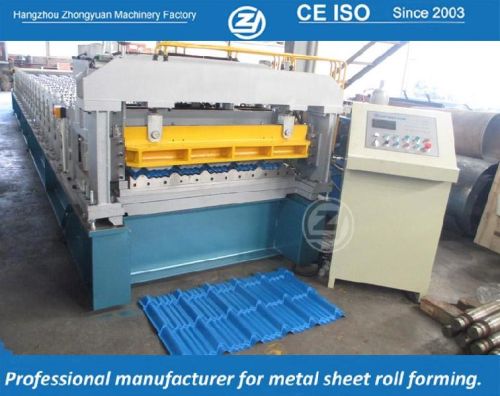

Contact SupplierMetal Glazed Tile Forming Machine
Technical Data of Metal Glazed Tile Forming Machine
Suitable material Q235 color steel sheet;0.5-0.6mm,
Working speed About5- 6mmin
Step distance adjustable according to requirement (>=250mm)
Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 5.5Kw(Depend on final design)
Material of forming rollers No.45 steel, plated with chrome on surface.
Material of cutter,pressing die Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel, Dia. is 72mm.Â
  Roller grinder milling.
Shaft diameter 72mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 10500KGS
Machine’s size about 18m×1.8m× 1.5m (Depend on final design)
Zhongyuan Machinery Factory spply the Metal Roll Forming Machine, Step Tile Forming Machines, Metal Deck Forming Machine, Line Forming Machine, Double Layer Roll Forming Machine, Sigma Forming Machine etc. Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry.
