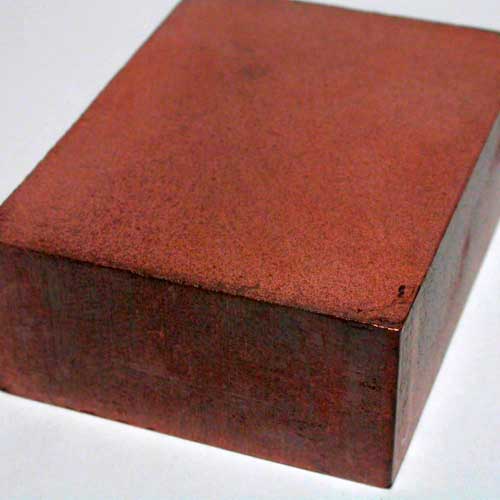

Metal Graphite Blocks

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Carbotech engineers is counted amongst the successful metal graphite blocks manufacturers, exporters & suppliers from jaipur (rajasthan). We offer different grades of copper graphite blocks used in the manufacture of carbon brushes. Carbon brushes are used in automobiles, induction motors, elevators, generators etc. We offer these blocks at highly competitive market prices. std. Block size length : 124mm x width : 67mm x thickness : (12.5; 16; 20; 22; 25; 32; 38; 40) mm

View More Details

Send Enquiry

Product Details

Technical Specifications

Our Grade	Morganite Equivalent Grade	Test Schedule	Contact Drop	Coeff of Friction	Commr-C/Slip ring-S	Normal Current Density: mA/mm²	Normal Max, Opr'ng Speed	Normal Applied Pressure: mN/mm²	Apparent Density: gms/cc	Shore Hardness	Speciifc Resistance: Microhms/cm	Transverse Strength: Kg/cm²	Application Guidance
CE-40	CMO	H	less than 0.4V per brush	0.15 to 0.20	C	230	20m/sec	14	5.5	10	13.5	750	Automobile Self Starters 6-12 Volts Lucas Design;Induction Motor Sliprings; Circuit Breakers & Elevator Controller Contacts
CE-5	CM 3H	A	less than 0.4V per brush	0.15 to 0.20	C/S	125/155	30m/sec	21	4.6	11	27	400	Rotary Coverter & Induction Motor Slip Rings of G.E.C., A.E.I, Seimens etc. make; low voltage generators from 6-12 Volts
CE-6	CM 5H	A	less than 0.4V per brush	0.15 to 0.20	C/S	115/140	30m/sec	21	4.0	12.5	60	240	Rotary Coverter & Induction Motor Slip Rings of NGEF make & generators from 12-30 Volts
CE-145	CM 2	C	less than 0.4V per brush	0.15 to 0.20	C/S	155/230	30m/sec	18	4.7	12.5	12	410	Industion Motor Slip Rings specially KEC make
