Metal Laser Cutting Machine

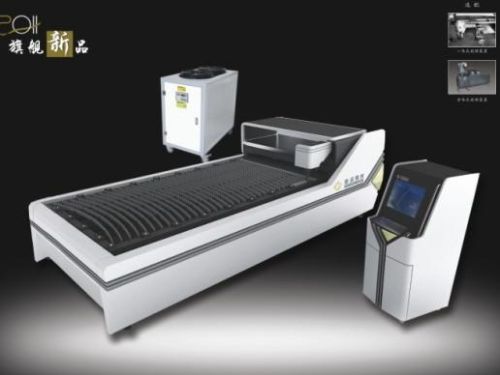

Gjmsjg-130250 Dt Yag Laser Precision Cutting Machine
product Feature
if Equips with Medium Power Lamp Pump Yag Laser, It Can Cut Any Arbitrary Shape as You Want in Sheet Metal Within 1300mm * 2500mm. Especially Suitable for Sheet Metal Cutting, High Cutting Speed and Precision, Cooperate with Following Dynamic Auto-focus Device, Can Realize Cutting the Material with Different Thickness By Automatically Focus. the Working Table Has Metal Balls Which Can Moving Easily, to Help You Easily Loading and Unloading Materials, Largely Save Man Power.
this Equipment Can Select Whole or Detached Rotary Equipment
application Field
suitable for all Kinds of Precision Cutting to Metal Material, Sheet Metals, Kitchen Ware, Spare Parts, Component
carbon Steel, Stainless Steel, Alloy Steel, Aluminum, Alloys, Aluminum Sheet, Golden, Silver, Ti, Tubes Etc
technical Parameter
laser Generator yag Lamp Pump Laser
laser Power 500w
cutting Area 1300mm X 2500mm, 1500mm X 3000mm Optional
working Table net Saw-teeth Work Table
no Load Max Speed 0-30000mm/min
repeating Location ±0.1mm
moving System offline Cnc System,Servo Motor,Precision Ball Screw Drive
cooling System 18kw Constant Temperature Water Chiller
power Supply 380v±5%/50/60hz
supporting Format plt, Dxf, Ai Etc
sdandard Collocation following Focus,550w Following Bottom Exhaust
select Collocation 650w Lamp Pump
*working Area and Laser Power Can Be Customized According to Requirement.*
goldenlaser Complete Solution for Metal Working
* Auto-nesting
* Fast Pattern Digitizing
* Auto-recognition
* Precision Cutting
* Unloading Management
* Marking and Scribing
* Polishing and Painting
* Metal Marking
* Multi-position Marking Solution
* 3d Dynamic Large-scale Marking On Different Height Object
---if You are Interested in Our Products, Please Contact Me(limu At Goldenlaser.org) for Quotation and Offersheet.
