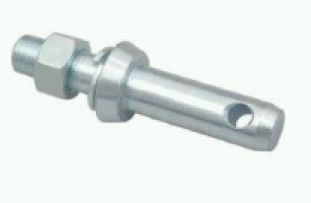

Metal Lower Link Pins, For Industrial

MOQ100 Piece(s)
MaterialMetal
ApplicationIndustrial
ConditionNew
Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Owing to our reliable transportation amenities, we are capable to deliver the placed orders within the given timeframe and at the right place. Utilizing state-of-the-art packaging tools and superior grade supplies, we pack our products and help them remain protected from external damages. Furthermore, the packages are labeled properly for information.

View More Details

Send Enquiry

Product Details

Graphical Images

Download Detail File : Click Here

Technical Data

Part Number	A	B	C	D	E	F	G	H	I	J
LLP-2218M	22	46	12	M18x1.5	133	18	5	31	37	45
LLP-2218M	22	46	12	M20x1.5	130	20	5	30	36	46
LLP-2218M	22	51	12	M20x1.5	128	20	5	30	36	38
LLP2211M	22	51	12	M20x1.5	130	20	10	30	36	40
LLP2201M	22	51	12	M22x1.5	140	22	5	30	38	40
LLP2202M	22	51	12	3/4"UNF	140	19	14	30	36	48
LLP2205U	22	51	12	5/8"UNF	140	22	6	30	36	43
LLP2206U	22	51	12	7/8"UNF	138	28.6	11	30	36	38
LLP2210U	22	51	12	7/8"UNF	140	22	14	30	36	46
LLP2216U	22	51	12	7/8"UNF	146	28.6	5	30	36	38
LLP2207U	22	51	12	7/8"UNF	149	22	22	30	36	54
LLP2204U	22	51	12	1"UNF	146	28.6	11	30	44	51
LLP2209U	22	60	12	M22x1.5	146	22	9.5	38	44	40
LLP22-22M	22	60	12	M22x1.5	146	25.4	16	38	44	40
LLP22-24M	22	60	12	M22x1.5	146	22	16	38	44	40
LLP22-25M	22	60	12	M22x1.5	146	24	16	38	44	40
LLP22-28M	22	60	12	M22x1.5	146	26	16	38	44	40
LLP22-22M	25	60	12	M22x1.5	146	28	16	38	44	40
LLP25-25M	25	60	12	M22x1.5	146	22	16	38	44	40
LLP25-28M	25	55	12	M24x1.5	146	25	16	38	44	45
LLP2822M	28	55	12	M27x1.5	150	28	15	38	44	45
LLP2823M	28	58	12	M27x1.5	150	24	14	38	44	48
LLP2824M	28	60	12	M27x1.5	147	28	10	38	44	35
LLP2845M	28	60	12	M22x1.5	140	24	15	38	44	40
LLP28-22M	28	60	12	M22x1.5	146	28	16	38	44	40
LLP28-24M	28	60	12	M22x1.5	146	27	16	38	44	40
LLP28-25M	28	60	12	M22x1.5	146	28	16	38	44	40
LLP28-28M	28	51	12	3/4"UNF	146	22	16	38	44	36.5
LLP2836U	28.6	60	12	3/4"UNF	149	24	24	38	44	54
LLP2840U	28.6	60	12	7/8"UNF	149	25	6	38	44	35
LLP2842U	28.6	60	12	7/8"UNF	136.5	28	12.7	38	44	44
LLP2843U	28.6	60	12	7/8"UNF	146	28.6	12.7	38	44	38
LLP2841U	28.6	60	12	1"UNF	149	25.4	22	38	44	51
LLP2839U	28.6	57	12	9/8"UNF	149	28.6	9.5	38	44	60
LLP2837U	28.6	60	12	9/8"UNF	159	28.6	16	38	44	51
LLP2838U	28.6	60	12	9/8"UNF	149	28.6	9.5	38	44	60
LLP3845U	36	54	12	9/8"UNF	149	28.6	16	46	52	48
LLP3642U	36.5	61	12	M27x1.5	165	27	29	46	52	60
