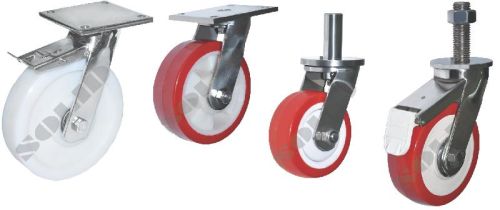

Medium Duty Castor Bracket :
Wheel | MD Castor | HD Castor | Plate Type (PT) | Pin(PI)/ Stud(ST) Type | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DIA MM | Width MM | Load Capacity Dynamic | Load Capacity Static | Total Height | Load Capacity Dynamic | Load Capacity Static | Total Height | Plate Size | Bolt Hole Spacing | Bolt Holes | Pin Size | Stud Size | Length MM |
50 | 25 | 30 | 45 | 80 | 60 | 70 | 90 | 75x50 | 60x30 | 6 | 19 | M10 | 50 |
65 | 25 | 40 | 55 | 85 | 68 | 80 | 95 | 75x65 | 54x43 | 6 | 19 | M11 | 50 |
75 | 25 | 45 | 60 | 95 | 75 | 100 | 105 | 75x65 | 54x43 | 6 | 19 | M12 | 50 |
75 | 32 | 65 | 90 | 105 | 115 | 150 | 115 | 75x75 | 55x55 | 9 | 22 | M12 | 50 |
100 | 32 | 80 | 120 | 135 | 130 | 170 | 145 | 75x75 | 55x55 | 9 | 22 | M12 | 50 |
100 | 38 | 100 | 145 | 135 | 160 | 200 | 145 | 100x80 | 80x60 | 10 | 22 | M16 | 50 |
100 | 50 | 120 | 190 | 135 | 180 | 250 | 145 | 100x100 | 75x75 | 12 | 22 | M16 | 50 |
125 | 32 | 115 | 150 | 155 | 165 | 225 | 170 | 100x80 | 80x60 | 10 | 22 | M16 | 50 |
125 | 38 | 125 | 160 | 155 | 200 | 260 | 170 | 100x80 | 80x60 | 10 | 22 | M16 | 50 |
125 | 50 | 150 | 230 | 155 | 230 | 325 | 170 | 125x100 | 100x75 | 12 | 32 | M20 | 50 |
150 | 50 | 210 | 265 | 180 | 305 | 410 | 210 | 125x100 | 100x75 | 12 | 32 | M20 | 50 |
200 | 50 | 220 | 390 | 235 | 410 | 500 | 255 | 125x125 | 100x100 | 12 | 32 | M20 | 50 |
