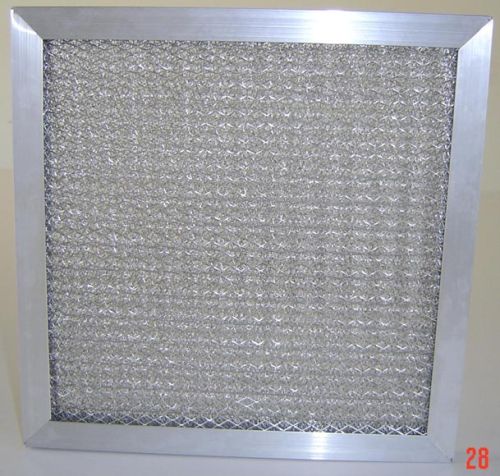

Metal Mesh Primary Air Filter

MOQ50 Piece(s)
Temp. Resistance300℃
MediaMulti-level structure, can increase the filtering area
Protect meshAluminum or stainless steel mesh
Final resistance(suggest) 100Pa-200Pa
En799 classG2
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 2006

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Temp. Resistance300℃
Final resistance(suggest) 100Pa-200Pa
En799 classG2
MediaMulti-level structure, can increase the filtering area
Protect meshAluminum or stainless steel mesh

We are offering metal mesh primary air filter.
metal mesh primary air filter
1)application: high temperature resistance filter dust,
used in the high temperature environment, pre-filter through air filter system.
2) type: plank metal mesh pre-filter
3) frame: galvanized iron, stainless steel or aluminum alloy frame
4) media: multi-level structure, can increase the filtering area
5) protect mesh: aluminum or stainless steel mesh
6) en799 class: g2
7) average arrestance: 65%-70% (ashrae52.1-1992)
8) eurovent4/5 class: eu2
9) din53438 non-flammability standard : f1
10) final resistance: (suggest) 100pa-200pa
11) max. Air flow : 125% of the rated air flow
12) temp. Resistance: 300degree
technical parameters.
Type: dimensions rated air flow en779 eu4/5 initial resistance
( mm ) ( m3/h ) ( pa )
width height depth 　　
zhany-1 595 595 21 3600 g2 eu2 ≤25
zhany-2 595 290 21 1800 g2 eu2
zhany-3 595 595 25 3800 g2 eu2 ≤30
zhany-4 595 290 25 1900 g2 eu2
zhany-5 595 595 46 4000 g2 eu2 ≤35
zhany-6 595 290 46 2000 g2 eu2
