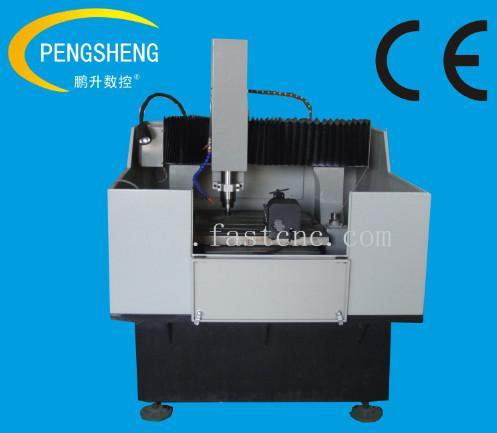

Metal Mould Engraving Machine, Brand Name : Penn

We are offering metal mould engraving machine.
Feature:
the whole lathe bed of metal cnc engraving machine is cast iron,it is
quite stable and heavy duty. 1.the spindle equipment is the first brand of the world, china domestic
constant power rate metal engarving water cooling spindle. 2. Three axes adopt imported ball screw and cirle orbit,stable working,high
precision and long life time. 3. X axis is dustproof.it makes sure the steady working performance of the
machine for long-term using. 4. Well compatibility:cadcam designing software e.g. Type3artcam
castmatewentai etc. 5. Has the function of forecasting process time. 6. High precision,the curving and linear speeds are consistent.adopting
execellent parts makes the fault rate to be the lowest one.
Technical parameter:
model pc-3040mpc-6060m
x.y working area（mm） 300*400600*600
z working area 200mm
resolution 0.02mm
x,y,z structure taiwan ball screw
max speed 9mmin
spindle power 1.5kw2.2kw3.0kw4.5kw
diameter of rotary 8cm
spindle rotating speed 0-24000rmin
cooling mode water cooling
working voltage ac220v5060 hz ,2ph
drive motor stepper
command g code*.u00*.mmg*plt
operating system nc studio
diameter of cutter 3.175-12.7
work-holding by clamp
applicable industries:moulding industry,it can engrave all kinds of nonmetal molulding,
especial for autocar foam moulding,steamship wooden model,aviation
wooden model,train wooden model,etc.musical instrument industry,it can engrave 3d surface of large scale
musical instrument and the contour cuttingapplicable material:metal,plastic,pvc,wood,mdf,etc.
